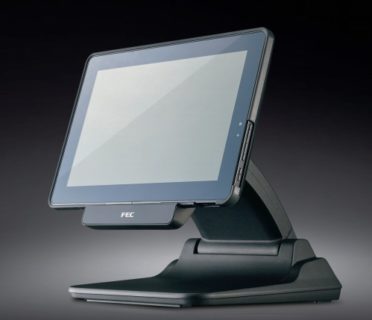

FEC offer new generation smart tablet in 10” as mobile POS and multi-function system to take all your future business in hand. FEC AerTab AT-1450 is a meticulously sophisticated designed compact mobile tablet to offer incredible mobility. Using latest Intel Cherry Trail Atom processor to accomplish high performance and reduce energy consumption, AT-1450 supports Windows and Android OS. Optional service cradle and service station enable this mobile system with multiple powerful functions.
Features
- 10.1″ projected capacitive touch screen in 1280 x 800 high definition.
- Intel Cherry Trail Atom processor, for Windows 10 or Android 5.1 OS.
- 6800mAh high capacity battery – longest operating time in industry.
- Front camera: 8 MP. (Optional),Rear camera: 2 MP.
- MicroSD Card slot for maximum 128 GB expandable storage.
- Built-in Wi-Fi, Bluetooth, GPS module for various connectivity.
Service Cradle
- Scanner for immediate 1D / 2D barcode reading.
- Additional 6800mAh high capacity battery for all day using.
- MSR & IC card reader for multiple data reading / writing and EMV support.
- Built-in NFC reader enables contactless transactions.
- USB 2.0 port for instant data transmitting.
- 1.2m free fall protection (with cradle).
Service Station
- Docking station for instant power charging & data transmitting.
- Foldable stand with tiny footprint for efficient space saving.
- Various optional I/O interface for flexible solutions.
| Processor |
Intel Cherry Trail Quad Core Atom X5 Z8300 1.44G (Turboboost to 1.84G) |
| System Memory |
DDR3 2G(Android)
DDR3 4G(Windows) |
| Power Supply |
10W (5V / 2A) |
| Built-in Storage |
eMMC 32G eMMC 64G |
| Second Storage |
Micro SD Card Slot (Max:128GB) |
| Speaker |
2 x 1W Internal Speaker |
| Camera |
Front: 2 MP / Rear: 8 MP (Optional) |
| Battery |
6800mAh (Built-in) |
| Connection |
Wifi 802.11b/g/n 2.4Ghz; Bluetooth 4.0 |
| Construction |
Plastic |
| Size / Resolution |
10.1” IPS / 1280 x 800 |
| Brightness (Backlight Type) & Touch Screen |
350 cd/m2 (LED); Projected Capacitive (Multi-touch) |
| Service Cradle (Optional) |
MSR / IC Card Reader / 2D Barcode Scanner / NFC / Battery / 1 x USB 2.0 |
| Service Station |
USB Port : 2 x USB 2.0; 1 x USB 3.0
Cash Drawer : Port 1 x RJ11 (12V)
LAN Port : 1 x RJ45 LAN (10 / 100)
Video Port : 1 x
DC Power : 1 x 12V DC Input |
| Optional I/O (for Service Station) |
Type A : 2 x RJ45 COM; 1 x 24V DC Output
Type B : 2 x RJ45 COM; 1 x 24V Power USB
Type C : 2 x RJ45 COM; 1 x 12V Power USB
Type G : 3 x 12V Power USB
Type H : 2 x 12V Power USB; 1 x 24V Power USB |
| Supported OS |
Windows : Windows 10 Enterprise (64bit only)
Android : Android 5.1 |
| Dimensions & Weight |
Tablet (W x H x D) : 265 x 182 x 11 mm, 0.662 Kg
Tablet with Cradle (W x H x D) : 268 x 187 x 32 mm, 1.1 Kg
Tablet with Cradle & Station (W x H x D) : 268 x 286 x 222 mm, 3.5 Kg |
| Operating Temperature |
0˚C ~ 40˚C (32˚F ~ 104˚F) |
| Storage Temperature |
-20˚C ~ 60˚C (-4˚F ~ 130˚F) |
