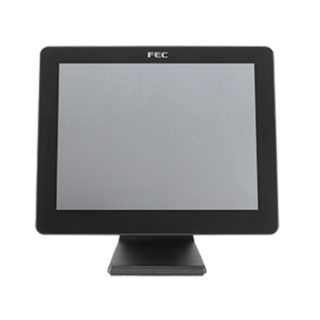

AerMonitor is a slim and sleek monitor designed to give you more possibilities. Choose between a thirteen or fifteen inch display and a wide selection of add-on devices and peripheral to make the perfect monitor for your store.
| Size |
15″ TFT LCD |
| Maximum Resolution |
1024 x 768
|
| Contrast Ratio |
500 : 1 |
| LCD Brightness |
250 cd/㎡ (50 K hours ) |
| Touch Screen |
AM-3015GL: Bezel-free None Touch
AM-3015AL: With-bezel 5W Resistive
AM-3015CL, AM-3015C: Bezel-free Projective Capacitive
|
| Touch Screen Interface |
AM-3015GL: N/A
AM-3015AL, AM-3015CL: 1 x USB Touch Cable Out
AM-3015C: 1 x USB Type B
|
| Video Port |
1 x VGA, 1 x DVI |
| Audio Port |
AM-3015GL: N/A
AM-3015AL, AM-3015CL: 1 x Line in (optional)
AM-3015C: 1 x Line in
|
| Add-On Device |
AM-3015GL: N/A
AM-3015AL, AM-3015CL: 1 x Side USB Port (Optional)
AM-3015C: 1 x Side USB Port (Optional), 1 x DB9M (Optional)
|
| DC-In Port |
1 x 2.5mm DC jack |
| Power Supply |
20W (12V/1.67A) External Power Adaptor |
| Speaker |
AM-3015GL: N/A
AM-3015AL, AM-3015CL, AM-3015C : 2W x 2 Speaker (Optional)
|
| Housing Color |
Black |
| Construction |
Aluminum Die-casting + Plastic
|
| Dimensions (W x H x D) |
364 x 40 x 291 mm (Without Base)
364 x 224 x 345 mm (With Base) |
| Mounting Holes |
VESA 100 x 100 mm
|
| Net Weight |
2.93 Kg (Without Base)
3 Kg (With Base) |
| Gross Weight |
5.93 Kg
|
| Carton Size (W x H x D) |
477 x 307 x 448 mm
|
| Operating Temperature |
0℃~40℃
|
| Storage Temperature |
–20℃~70℃
|
