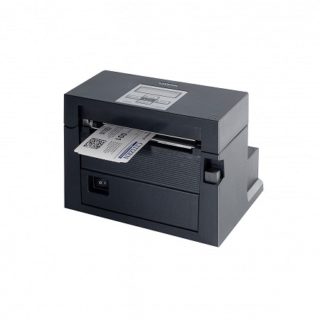

The direct thermal printer CL-S400DT from Citizen is a compact yet highly powerful solution for large-sized and fan-fold media. Especially with the great length of usable media – up to 812 mm – this printer perfectly suits many applications. Labeling shelves in retail and logistics becomes easy, while travel agencies or ticket shops churn out boarding passes and tickets.
The inconspicuous housing contains a high-quality construction within merely 206 x 149 x150 mm. Completely made of metal, the mechanics meet industrial requirements. Due to the Hi-Lift mechanism and integrated control panel and display, handling is a breeze. Configuration is also simple: connect the printer via RS232, USB, Ethernet or parallel interface and the Cross-Emulation will automatically identify ZPL and Datamax signals.
The CL-S400DT processes continuous media from fanfold stacks in front of the intake, or from rolls using the retrofit media holder. To separate printouts, use the tear-off edge or the optional cutter.
| Technology |
Direct Thermal |
| Resolution |
203 dpi (8 dots per mm) |
| Emulations (Languages) |
Datamax® I-Class™ & DMX400™, Zebra® ZPL-II®. Cross-Emulation™ automatic detection BASIC interpreter for data stream processing and ticketing emulations) |
| Print Speed (maximum) |
6 inches per second (150 mm/s) |
Print Width (maximum)
4.10 inches (104.1 mm)
|
Media Thickness (min to max)
| 0.0025 – 0.01 inches (0.0635 – 0.254 mm) |
| Media Sensor |
Fully adjustable with label gap, card notch and black registration mark |
| Media Length (min to max) |
0.25 inches to 32.00 inches (6.35 mm to 812.8 mm) Roll Size (max) Core size 5 inches (125 mm) diameter with standard holder. Core size: 1 inch (25mm)/td>
|
| Standard Interfaces |
Serial (RS-232C), USB (version 2.0, full speed) |
| Optional Interfaces |
Parallel (IEEE-1284), Ethernet (10/100 BaseT)
Case, Mechanism Hi-Open™ plastic case with safe close. Hi-Lift™ metal mechanism |
| Control Panel |
16×2 LCD with two-colour backlight. 4 buttons and sophisticated menu
and configuration system |
| RAM (Standard Memory) |
16.0 MB total, 1.0 Mb available for user |
| Flash (Non-Volatile Memory) |
8.0 MB total, 1.0 Mb available for user |
| Autocutter Option |
Guillotine type, Dealer Installable
Number of cuts 300,000 cuts on media 0.06-0.15mm; 100,000 cuts 0.15-0.25mm |
| Windows® drivers |
Free-of-charge on CD including design software supporting Windows®,
and software XP®, 2003, 2008, Vista™, Windows 7 |
| Size (W x D x H) and Weight |
206 x 149 x 150mm, 2.68 Kgs (excluding roll holder)
|
| Printer, Head Warranty |
2 Years for Printer; 30 Kms or 6 months on Printheads |
