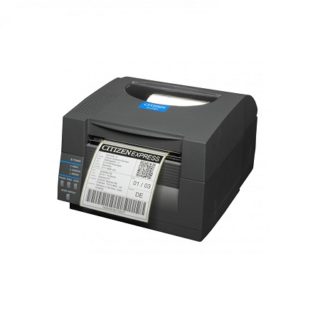

The Citizen CL-S521 is the successor to the CL-P521. It boasts an aggressive price/performance ratio and sophisticated functionality. High reliability, a durable construction and a user-friendly design guarantee successful operation.
The CL-S521 creates up to 118 mm wide labels using direct thermal printing, with a maximum print width of 104 mm, a speed of 150 mm/sec. and a resolution of 8 dots/mm (203 dpi). A large supply of labels reduces troublesome roll changes. It optimises important features: its sensor adjusts to different materials and widths. It can also be aligned to fit individual formats. Optionally, a dispenser and cutter are easy to retrofit. This is ideal for shipping, assembly line or other applications that require simple continuous feed label solutions. The printer switches automatically between the Datamax and ZPL languages. Together with the large Flash memory, this cross-emulation guarantees you a wide range of applications. The CL-S521 has an integrated serial and USB interface. Optionally install a parallel, Ethernet or Wi-Fi card for optimal connectivity. The compact housing contains the AC adaptor and is available in white and black.
| Models |
CL-S521 |
CL-S621 |
CL-S631 |
Emulations (Languages) |
Datamax® I-Class™ & DMX400™, Zebra® ZPL-II®. |
1 |
| Print Speed (maximum) |
6 inches per second (150 mm/s), 4 inches per second (100 mm/s)#, 4 inches per second (100 mm/s) |
| Print Width (maximum) |
4.10 inches (104.1 mm) |
| Media Width (min to max) |
0.50 inches to 4.65 inches (12.5 mm to 118.1 mm) |
| Media Thickness (min to max) |
0.0025 – 0.01 inches (0.0635 – 0.254 mm) |
| Media Sensor |
Fully adjustable with label gap, card notch and black registration mark. |
| Media Length (min to max) |
0.25 inches to 64.00 inches (6.35 mm to 1625.6 mm) 0.25 – 32 inches (6.35 – 812.8mm) |
| Roll Size (max), Core size Internally |
5 inches (125 mm) diameter. Externally 8 inches with optional holder. Core size: 1 inch (25mm)
|
| Ribbon Size |
2.9 inches (74 mm) maximum diameter |
| Ribbon Winding & Type |
360 meter length, 1 inch cores |
| Ribbon System |
Not applicable – direct thermal only
Ink side in or out. Wax, Wax/Resin or Resin Type
ARCP™ automatic ribbon tension adjustment |
| Standard Interfaces |
Serial (RS-232C), USB (version 1.1)
Optional Interfaces:Parallel (IEEE-1284), Ethernet (10/100 BaseT), Wireless LAN (802.11b, g, n*) |
| Case |
Mechanism & Panel Hi-Open™ plastic case with safe close. Hi-Lift™ metal mechanism. |
| Control Panel |
4 buttons and 4 LEDs |
| Flash (Non-Volatile Memory) |
4.0 Mb total, 1.0 Mb available for user |
| Windows® drivers and software |
Free-of-charge on CD including design software supporting Windows®, XP®, 2003, 2008, Vista™, Windows 7 |
| Size (W x D x H) and Weight |
231 x 289 x 183mm, 3.6 Kgs 231 x 289 x 270 mm, 4.5 Kgs |
| Printer, Head Warranty |
2 Years, 30 Kms or 6 months 2 Years on Printer, 50 Kms or 6 months on printhead |
