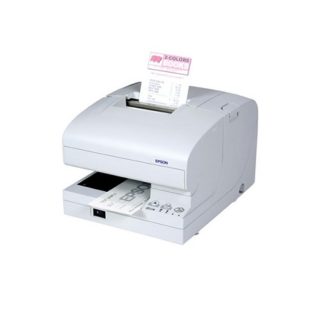

Epson TM-J7100

Drop us a line

Fast, high quality colour printing

The TM-J7000 series produces high-resolution 2-colour printing, which means you can fully differentiate your service at the point of sale with eyecatching receipts, featuring bright, high impact colour logos and advertisements. A printing speed of 16 lines of text per second or complex graphics, barcodes and coupons at up to 50mm per second enables you to keep customer waiting times to a minimum. Using Epson’s proven SEAJet printing technology, the result is sharp, easy to read, and permanent, with no fading.

Single-insertion cheque-printing

The sophisticated single-insertion system combines high-speed MICR reading, cheque-printing and endorsement. It’s fast, simple and, because there’s no need to flip the cheque, it’s virtually error free – even when presented with folded or crumpled cheques.

Ease of use and excellent connectivity

In addition to the front-loading system, which allows both paper roll and ink cartridges to be changed quickly, these printers include ink near-end detectors and and an operations panel which is located at the front, and is simple to use, even for inexperienced operators. As well as high-speed serial, parallel, Ethernet and USB ports, an IBM interface means the TM-J7000 can be used as a simple drop-in replacement for your existing legacy printer or as the first stage in a full system upgrade..

Low cost of ownership

With an autocutter life of 1.5 million cuts, and an MCBF of 50 million lines, this series is extremely reliable. In addition, the printer’s long-life ink cartridges are capable of producing up to 20 million characters (15 million for 2-colour), making it exceptionally efficient for the point of sale in demanding retail environments.

Specifications

Print method	Serial inkjet dot matrix (180 dpi x 180 dpi)
Technology	Inkjet
Print speed character	14.30 lps (0 mm paper width)
Print speed graphic	43 mm/sec
Column capacity receipt	Paper width 76 mm, 40 / 53
Column capacity slip	48 cps / 64 cps
Character Size	95 Alphanumeric, 37 International, 128 x 11 Graphic
Character per inch	15 cpi / 20 cpi
Dot density	180 DPI x 180 DPI
Colour Printing	Two Colors
Paper types	Receipt, Slip
Paper size roll paper	82.50 ± 0.50 (W) mm x dia 83.00 mm, 76.00 ± 0.50 (W) mm x dia 83.00 mm, 69.50 ± 0.50 (W) mm x dia 83.00 mm, 57.50 ± 0.50 (W) mm x dia 83.00 mm
Paper size slip	68 – 230 mm (W) x 68 – 297 mm (H), Min 68 – 152 mm
Interfaces	Bidirectional parallel, Customer Display, Drawer kick-out, RS-232
Power Supply	PS-180 (option)
Power Consumption	Standby: 0.07 A, Mean: 0.5 A
Operating Voltage	24 V
Product dimensions	195‎ x 237 x 188 mm (Width x Depth x Height)
Product weight	4.4 kg
Colour	Epson Dark Grey / Epson Cool White
Installation	Horizontally
Interface connectors	D.K.D. function (2 drivers), Customer display port
Noise Level	Operation: 50 dB (A)
Humidity	Operation 20% – 80%, Storage 5% – 85%
Temperature	Operation 4° C – 40° C, Storage -20° C – 60° C
Reliability	50,000,000 MCBF (Lines), 180,000 MTBF (Hours)
Auto Cutter Life	1,500,000 Cuts
Ink Life	15,000,000 characters
Printer Life	20,000,000 lines
Print Head Life	1,600,000,000 pulses
Standards Compliance	EMC Standards : CE marking Safety standards : TUV
Other Features	Changeable interface : Yes Factory options : Endorsement printer (E/P) Sensors : Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Top of Form sensor, Bottom of Form sensor, Ink cartridge sensor, Ink near end sensor
