The combination of its fast print speeds, high reliability and economical operation, make this Energy Star qualified printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.
Affordable
This easy-to-use model is our most affordable POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and bar code height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.
Reliable

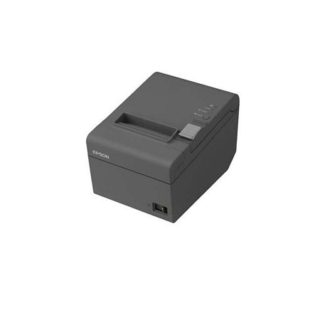

With its MTBF of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20II in high-volume printing environments.
Flexible
The TM-T20II comes with a built-in USB interface and you can select from two models: 1) USB + Serial, 2) USB + Ethernet, making the model a long-term investment as it is possible to switch connectivity at any time.
Fast
Its print speeds of 200mm/sec can save you time and its competitive price and running costs can save you money, ideal for when you need to beat queues quickly.
Key Features
- Economical – Automatic paper reduction function
- Reliable – Mechanism life of 15 million lines
- Fast print speed – Print speed of 200mm/sec
- Flexible connectivity – Two models: 1) USB + Serial 2) USB + Ethernet
| Print method |
Thermal line printing |
| Print speed |
200 mm/sec
|
| Print speed receipt |
200 mm/sec
|
| Printing Font |
ANK |
| Column capacity receipt |
Paper width 80 mm, 48 / 64 |
| Characters per inch |
22.6 cpi / 16.9 cpi |
| Character set |
95 Alphanumeric, 18 set International, 128 x 43 Graphic
|
| Dot density |
203 DPI x 203 DPI |
| Colour Printing |
Black |
| Printing Characters |
Text (incl. Euro symbol), Graphics, Barcode |
| Paper types |
Receipt |
| Paper size roll paper |
79.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm |
| Interfaces |
Drawer kick-out, USB 2.0 Type B, Wired Network, RS-232 |
| Data Buffer |
4 kB or 45 Bytes |
| Power Supply |
PS-180 & EURO AC cable, PS-180 & UK AC cable |
| Power Consumption |
Standby: 0.1 A, Mean: 1.8 A |
| Operating Voltage |
24 V |
| Product dimensions |
140 x 199 x 146 mm (Width x Depth x Height) |
| Product weight |
1.7 kg |
| Colour |
Epson Dark Grey |
| Installation |
Horizontally, Vertically, Vertically with wall hanging bracket |
| Interface connectors |
D.K.D. function (2 drivers) |
| Noise Level |
Operation: 55 dB (A) |
| Humidity |
Operation 10% – 90%, Storage 10% – 90% |
| Temperature |
Operation 5° C – 45° C, Storage -10° C – 50° C |
| Reliability |
60,000,000 MCBF (Lines), 360,000 MTBF (Hours) |
| Auto Cutter Life |
1,500,000 Cuts |
| Printer Life |
15,000,000 lines |
| Print Head Life |
100 km – 100,000,000 pulses |
| Standards Compliance |
EMC Standards : FCC class A, CE marking, EN55022 Class A
Safety standards : UL, CSA, TUV |
| Other Features |
Cutter : Partial Cut
Sensors : Roll paper cover open sensor, Paper End Sensor |
