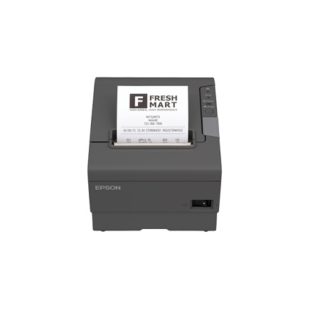

Epson TM-T88Vi

Drop us a line

The Epson TM-T88V-i provides users with a straightforward and elegant printing solution, with no need for drivers. Ideal for use with tablet PCs or mobile phones, the TM-T88V-i is simple to use and maintain, with the ability to print from any device running an HTML 5 compatible web browser. In addition, the TM-T88V-i has greyscale printing for the addition of logos and images to receipts.

Ease of use

The Epson TM-T88V-i provides convenient and straightforward receipt printing directly from tablet PCs and other mobile devices without the need for drivers, so a LAN or WLAN connection is all that you will need. In fact, the TM-T88V-i can print from any device that is running a popular web browser.

Intelligent functionality

Using a unique built-in intelligence called ePOS-Print, the TM-T88V-i is able to receive XML commands from web applications in addition to communicating directly with browsers supporting HTML 5, such as Safari®, Chrome™, Internet Explorer® and the standard Android browser. This makes the TM-T88V-i ideal for restaurants, hotels and bars using tablet PCs or mobile phones for ordering. Additionally, users can switch between applications without changing printer settings, and configure the printer from mobile devices.

Control connected devices

Due to ePOS-Print’s ability to recognise all major ESC/POS functions which are sent as XML commands, the TM-T88V-i can control cash drawers, as well as additional printers with a wired or wireless UIB interface, such as order-driving kitchen printers.

Reliable, easy servicing and maintenance

The TM-T88V-i is ideal for businesses that require a stable system that is cost-effective to implement and maintain. With no drivers to update and no need for a permanent connection to a PC or server, servicing and trouble-shooting are simple. In addition, fewer pieces of equipment mean less power consumption, reducing bills and environmental impact.

Greyscale printing

The TM-T88V-i has the added benefit of greyscale printing. This allows users to add logos and images to their printouts, providing extra marketing opportunities when printing receipts and materials which customers will interact with.

Key Features

Print via browsers – Print directly from HTML 5 browsers
No drivers needed – No drivers to install or update
XML compatible – Responds to web application commands
ESC/POS function – Recognises functions sent as XML
Greyscale printing – Add logos and images to materials

Specifications

Print method	Thermal line printing
Print speed	350 mm/sec (300 mm/sec default)
Print speed receipt	350 mm/sec
Printing Font	ANK
Column capacity receipt	Paper width 80 mm, 58 / 80
Character size	12 mm (W) x 24 mm (H) / 99 mm (W) x 24 mm (H)
Character set	95 Alphanumeric, 18 set International, 128 x 43 Graphic
Dot density	180 DPI x 180 DPI
Printing Characters	Text (incl. Euro symbol), Graphics, Barcode
Paper types	Receipt
Paper thickness	48 mm – 80 mm
Paper size roll paper	79.50 ± 0.50 (W) mm x dia 83.00 mm, 57.50 ± 0.50 (W) mm x dia 83.00 mm
Interfaces	Bluetooth (optional), Drawer kick-out, Wireless LAN IEEE 802.11a/b/g/n (optional), Wireless LAN IEEE 802.11b/g/n (WiFi 4) (optional), Wired Network, RS-232 (optional), Parallel (optional), Powered USB (optional), USB 2.0 Type B, USB 2.0 Type A
Data Buffer	4 kB or 45 Bytes
Power Supply	PS-180, AC cable
Operating Voltage	24 V
Product dimensions	145‎ x 195 x 148 mm (Width x Depth x Height)
Product weight	1.6 kg
Colour	Black / White
Installation	Horizontally, Wall hanging
Interface connectors	D.K.D. function
Humidity	Operation 10% – 90%
Temperature	Operation 5° C – 45° C, Storage -10° C – 50° C
Reliability	70,000,000 MCBF (Lines), 360,000 MTBF (Hours)
Auto Cutter Life	3,000,000 Cuts
Printer Life	20,000,000 lines
Print Head Life	200 km – 200,000,000 pulses
Standards Compliance	EMC Standards : CE marking, EN55024 Safety standards : UL, CSA
Other Features	Changeable interface : Yes NFC : Near Field Communication available Cutter : Partial Cut Sensors : Paper Near End Sensor, Cover Open Sensor, Paper sensor
