Easy to use

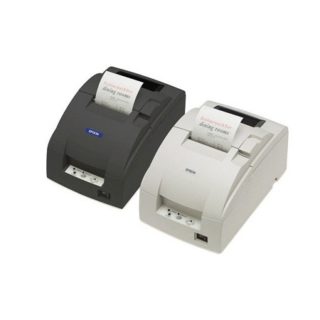

The TM-U220 is a robust, high performance impact receipt printer which is exceptionally easy to use. Featuring drop-in paper load, selectable auto-cutter and clamshell covers for easy access and maintenance, the TM-U220 is very reliable and prints on plain paper in three widths.
Compact
Space-saving and versatile, it has a footprint of just 160(W) x 248 (D) x 133 (H) mm, and can also be wall-mounted.
Key Features
- Flexible paper width: 76 / 69,5 / 58,5 mm
- Low TCO and affordable price
- Drop-in paper load
- Autocutter included
- High-speed printing through logical seeking control 6,0 lps (30cpl) / 4,7
- Wall mountable with optional kit
| Print method |
9-pin serial impact dot matrix |
| Technology |
Serial Impact Dot Matrix |
| Print speed |
4.70 lps (40 columns, 16.00 cpi) |
| Column capacity receipt |
Paper width 76 mm, 33 / 40 |
| Character size |
1.2 mm (W) x 3.1 mm (H) / 1.6 mm (W) x 3.1 mm (H) |
| Character set |
95 Alphanumeric, 48 International, 128 x 12 Graphic
|
| Characters per inch |
13.3 cpi / 16 cpi |
| Paper Types |
Receipt |
| Copy capability slip |
One copies plus one original |
| Paper size roll paper |
76.00 ± 0.50 (W) mm x dia 83.00 mm,
69.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm |
| Interfaces |
Bidirectional parallel, Drawer kick-out, RS-232
|
| Power Supply |
PS-180 (option) |
| Operating Voltage |
24 V |
| Product dimensions |
160 x 248 x 139 mm (Width x Depth x Height) |
| Product weight |
2.5 kg |
| Colour |
Epson Dark Grey / Epson Cool White |
| Interface connectors |
D.K.D. function (2 drivers) |
| Installation |
Horizontally, vertically with wall hanging bracket |
| Noise Level |
Operation: 64 dB (A) |
| Humidity |
Operation 10% – 90%, Storage 10% – 90% |
| Temperature |
Storage -10° C – 50° C |
| Reliability |
18,000,000 MCBF (Lines), 180,000 MTBF (Hours) |
| Printer Life |
7,500,000 lines |
| Auto Cutter Life |
800,000 Cuts |
| Standards Compliance |
EMC Standards : CE marking
Safety standards : TUV |
| Other Features |
Sensors : Roll paper cover open sensor, Paper End Sensor, Paper Near End Sensor
Cutter : Partial Cut
Changeable interface : Yes |
