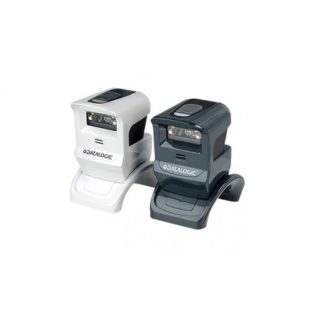

The Gryphon GPS4400 will impress you with more than its design. The flexible presentation scanner additionally offers above-average performance when capturing 1D and 2D codes including postal and stacked codes, even from displays. The latter makes the GPS4400 the ideal helper for capturing discount and special offer codes, as well as customer cards, directly from a smartphone. It is also perfect for usage at the POS in pharmacies, retail, as well as the hospitality reception area.
The housing sits on top of a flexible stand, and thus offers the optimal alignment for the simple and intuitive capture of barcodes. The proven scan engine, with the patented »Green Spot« good scan confirmation, features excellent scanning properties at close range, a wide scanning width and exceptional motion tolerance. The USB Plug ‘n Play port ensure smooth integration. Configure the barcode scanner in the classical fashion via the manual or via practical utilities from Datalogic. A 3-year manufacturer’s warranty secures your investment and speaks for the longevity of the product.
Features
- Elegant on-counter scanner for retail, pharmacies and hospitality
- Compact housing with removable stand
- Top performance, thanks to imaging technology and »Green Spot«
- Reads all 1D and 2D barcodes, even from mobile phone and monitor displays
- Alternatively supports image and document capture
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. |
| 2D Codes |
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code;Portuguese Post; Postnet; Royal Mail Code (RM4SCC),Swedish Post |
| Current |
Operating (Typical): 175 mA; Max: 200 mA
Standby/Idle (Typical):
Automatic/Object Sense Modes: 105 mA
Trigger/Serial On Line Modes: 55 mA |
| Input Voltage |
5 VDC +/- 5% |
| Ambient Light |
0 – 100,000 lux |
| Humidity (Non-condensing) |
90% |
| Temperature |
Operating: 0 to 40 °C / 32 to 104 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Drop Resistance |
Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface. |
| Particulate And Water Sealing |
IP52 |
| Interfaces |
RS-232; USB: OEM USB; USB COM; USB HID Keyboard |
| Colors Available |
Black, White |
| Dimensions |
With Stand: 12.1 x 10.7 x 7.3 cm / 4.8 x 4.2 x 2.9 in
Without Stand: 7.4 x 9.5 x 6.4 cm / 2.9 x 3.7 x 2.5 in |
| Weight |
With Stand: 295.0 g / 10.4 oz
Without Stand: 178.0 g / 6.3 oz |
| Image Capture |
752 x 480 pixels;
Graphic Formats: BMP, JPEG, TIFF;
Greyscale: 256, 16, 2 |
| Field of View |
Horizontal x Vertical: 40° H x 26° V |
| Light Source |
Aiming: 650 nm VLD
Illumination: 625 nm LED |
| Print Contrast Ratio (Minimum) |
25% |
| Reading Angle |
Pitch: +/- 40°; Roll (Tilt): 180°; Skew (Yaw): +/- 40° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume)
Datalogic ‘Green Spot’ Good Read Feedback
Good Read LED |
| Resolution (Maximum) |
1D Linear: 0.102 mm / 4 mils
Data Matrix: 0.178 mm / 7 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
Code 39: 5 mils: 2.6 to 18.8 cm / 1.0 to 7.4 in
Code 39: 10 mils: 0.0 to 37.9 cm / 0.0 to 14.9 in
Data Matrix: 10 mils: 2.3 to 14.5 cm / 0.9 to 5.7 in
Data Matrix: 15 mils: 0.0 to 23.2 cm / 0.0 to 9.1 in
EAN: 13 mils: 0.8 to 42.2 cm / 0.3 to 16.6 in
PDF417: 10 mils: 0.0 to 22.4 cm / 0.0 to 8.8 in
QR Code: 10 mils: 2.3 to 14.3 cm / 0.9 to 5.6 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS,Complies to EU RoHS |
| Laser Classification |
Caution Laser Radiation – Do not stare into beam; CDRH Class II; EN 60825-1 Class 2; IEC 60825 Class 2 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
3 Year Factory Warranty |
