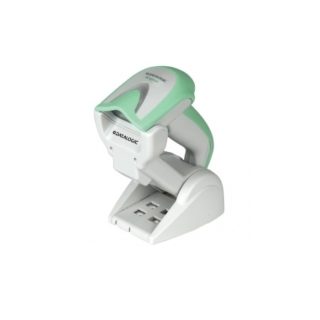

The scanners from Datalogic’s healthcare family are engineered specifically to fulfill the diverse requirements in the healthcare sector. Therefore, the Gryphon I 4400-HC ideally fits into demanding laboratory and hospital environments. Its sturdy special housing contains anti-microbial additives. It also resists daily cleaning with harsh disinfectants. The scanner is highly reliable and able to read the whole range of barcodes at high speed and omnidirectionally, even from mobile devices or monitor screens.
In addition to barcode scanning, it can be used as a camera for special tasks, such as the capture of signatures and documents. With its high motion tolerance, automatic change between handheld and presentation modes, aiming functionality and Datalogic’s patented Green Spot, the scanner’s handling is highly intuitive and increases productivity. Depending on the application area, choose between the cable-bound model, the Bluetooth version and those with 433 MHz radio technology. The Bluetooth model offers great flexibility, thanks to its 30 m radio range and storage of 1,200 codes in batch mode.
Just like the standard versions of the Gryphon I 4400, the healthcare variants also read all common 1D and 2D barcodes – printed on paper labels as well as from computer monitors and mobile device displays. This simplifies data capture and output in increasingly complex electronic clinic systems in individual cases significantly. Even read fast-moving barcodes reliably and quickly thanks to the outstanding motion tolerance.
With a special matching function, increase hospital patient safety, for example, with the administration of medication. With the Gryphon you are able to temporarily store a barcode and compare it with another barcode. If, for example, the value stored in barcode 1 in the patient‘s record matches what is printed on the medicine in barcode 2, the Green Spot directly shows the scan confirmation on the barcode. This effectively minimizes the risk of confusion of patients and medications.
Features
- Powerful handheld imagers designed for the healthcare sector
- Disinfectant-ready housing with anti-microbial additives
- Omnidirectional reading of all 1D, 2D, post and stacked codes
- Choice of cable-bound, wireless and Bluetooth (30 m) versions
- Automatic switching between handheld and presentation modes, thanks to motion sensing
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| 2D Codes |
Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Current |
Operating (Typical): 160 mA @ 5 VDC
Standby/Idle (Typical): 65 mA @ 5 VDC |
| Input Voltage |
4.2 – 5.25 VDC |
| Ambient Light |
0 – 100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.5 m / 5 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
5-90% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F |
| Interfaces |
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface |
| Colors Available |
Light Green/Light Grey (Rubber/Plastic) |
| Dimensions |
18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in |
| Weight |
195.0 g / 6.9 oz |
| Image Capture |
Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| Imager Sensor |
Wide VGA: 752 x 480 pixels |
| Light Source |
Aiming: 650 nm VLD |
| Motion Tolerance |
25 IPS |
| Print Contrast Ratio (Minimum) |
25% |
| Reading Angle |
Pitch: +/- 40°; Roll (Tilt): 180°; Skew (Yaw): +/- 40° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution (Maximum) |
1D Linear: 0.102 mm / 4 mils; Data Matrix:
0.178 mm / 7 mils; PDF417: 0.102 mm / 4 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
Code 39: 5 mils: 4.0 to 19.0 cm / 1.6 to 7.5 in
Code 39: 10 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in
Data Matrix: 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in
Data Matrix: 15 mils: 0 to 23.6 cm /0 to 9.3 in
EAN-13: 13 mils: 1.5 to 40.0 cm / 0.6 to 15.7 in
PDF417: 10 mils: 0.5 to 22.0 cm / 0.2 to 8.6 in
QR Code: 10 mils: 3.0 to 12.5 cm / 1.2 to 4.9 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Laser Classfication |
Caution Laser Radiation – Do not stare into beam; IEC 60825 Class 2 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
5-Year Factory Warranty |
