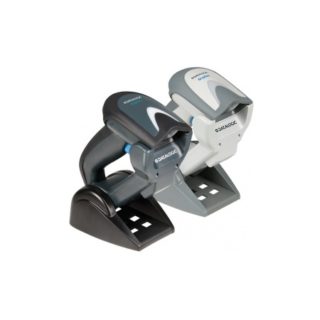

With the Gryphon I GBT4400 2D imager, Datalogic provides a multi-use area imager that meets the scanning requirements of a large bandwidth of applications, such as retail, the processing industry, data processing, entertainment, healthcare and transportation. Thanks to its strong decoding ability and processor power, it omnidirectionally reads 1D, 2D and stacked codes, capturing images and documents without loss of speed; and, if needed, it scans from displays and monitor screens.
Using Bluetooth 2.0 radio technology, its operation range reaches 30 m around its base station (not included in the standard delivery) and offers impressive flexibility with real-time data transfer. Outside this range area, the scanner switches automatically to batch mode and can store up to 1,200 codes, which are transferred by simply pressing a button when connection is re-established with the access point. Professional qualities, such as the Green Spot read confirmation, 4-dot aiming light and innovative Motionix motion sensor, which enables automatic switching between handheld and presentation modes, ensure dynamic ergonomics and intuitive handling.
Features
- Mobile 2D imager for highest demands in retail and light industry
- High-speed scan engine, providing quick capture of 1D, 2D and stacked codes, as well as pictures
- Ideal for ticket-shop applications – able to read from monitors and displays
- Bluetooth data transmission: great operation range up to 30 m
- Automatic stand recognition thanks to innovative Motionix technology
| Bluetooth Wireless Technology |
Piconet: Max. Readers per Radio Receiver: 7(when using an external Piconet dongle);
Profiles: SPP (Serial Port Profile)
Protocol: Bluetooth 2.0 Certified Class 2;
Radio Frequency: 2.4 GHz
Radio Range (Open Air): 30.0 m / 98.4 ft; Range distances are measured using the base station.Range with connection to other Bluetooth peripherals may show different results.
Security: Data Encryption; Scanner Authentication |
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| 2D Codes |
Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Battery |
Battery Type: Lithium-Ion, 2100 mAh;
Charge Time: External Power: 4 Hours @ 12 VDC;
Reads per Charge: 50,000 |
| Cradle Indicator Leds |
Battery Charging (Red); Charge Completed (Green);Power/Data (Yellow) |
| Current |
Charging (Typical): < 8 W;
Operating (Typical): < 2.5 W @ 5 VDC;
Standby/Idle (Typical): < 2.5 mA @ 5 VDC |
| Input Voltage |
4.5 – 14.0 VDC |
| Ambient Light |
0 – 100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
0-95% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F |
| Interfaces |
RS-232 / IBM 46XX / USB Multi-Interface;
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface |
| Colors Available |
Black; White |
| Dimensions |
Cradle: 18.6 x 9.9 x 5.6 cm / 7.25 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in |
| Weight |
Cradle: 246 g / 8.68 oz; Reader: 245 g / 8.64 oz |
| Image Capture |
Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| Imager Sensor |
Wide VGA: 752 x 480 pixels |
| Light Source |
Aiming: Red Laser 650 nm |
| Motion Tolerance |
25 IPS |
| Print Contrast Ratio (Minimum) |
25% |
| Reading Angle |
Pitch: +/- 40°; Roll (Tilt): 360°; Skew (Yaw): +/- 40° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED, |
| Resolution (Maximum) |
High Density (HD)
1D Linear: 0.077 mm / 3 mils
Data Matrix: 0.127 mm / 5 mils
PDF417: 0.102 mm / 4 mils
Standard Range (SR)
1D Linear: 0.102 mm / 4 mils
Data Matrix: 0.178 mm / 7 mils
PDF417: 0.127 mm / 5 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
High Density (HD)
Code 39: 3 mils: 2.4 to 9.1 cm / 0.9 to 3.6 in
Code 39: 5 mils: 0.8 to 11.3 cm / 0.3 to 4.5 in
Data Matrix: 5 mils: 2.8 to 6.1 cm / 1.1 to 2.4 in
EAN-13: 13 mils: 1.1 to 17.2 cm / 0.4 to 6.8 in
PDF417: 4 mils: 1.8 to 6.8 cm / 0.7 to 2.7 in
PDF417: 10 mils: 0 to 14.3 cm / 0 to 5.6 in
QR Code: 6.7 mils: 2.1 to 4.2 cm / 0.8 to 1.7 in
Standard Range (SR)
Code 39: 5 mils: 4.0 to 19.0 cm / 1.6 to 7.5 in
Code 39: 10 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in
Data Matrix: 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in
Data Matrix: 15 mils: 0 to 23.6 cm /0 to 9.3 in
EAN-13: 13 mils: 1.5 to 40.0 cm / 0.6 to 15.7 in
PDF417: 10 mils: 0.5 to 22.0 cm / 0.2 to 8.6 in
QR Code: 3.0 to 12.5 cm / 1.2 to 4.9 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Laser Classfication |
Caution Laser Radiation – Do not stare into beam; IEC 60825 Class 2 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
5-Year Factory Warranty |
