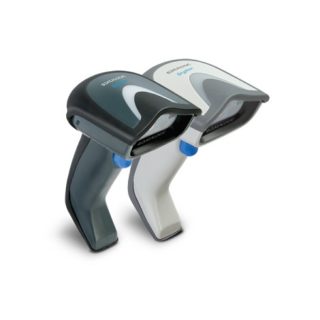

Pocket-sized mobile barcode scanner
The Gryphon I linear imager offers sophisticated scanning and decoding performance for multiple areas of application. It is specifically designed for use in commerce and offices, hospitals, pharmacies, light industry, warehouse logistics and production facilities.
Its wide scan angle of 42° enables you to read very large codes. Its improved decoding performance (325 decodes per second) increases output, accelerating reading performance of illegible or damaged codes. These features combined with high resolution of up to 3 mils, make the Gryphon I an extremely powerful solution for data collection. It is naturally equipped with the «Green Spot», patented by Datalogic, which is a positive reading confirmation directly on the code. The modern housing of the Gryphon I, its reduced weight and smaller size, combined with conformity to the IP52 standard, make this system a reliable, ergonomic solution, which can be operated comfortably and has highly developed scanning performance.
Through the mounting option for tables and walls and its flexibly adjustable gooseneck stand, the scanner can optionally be used as a handheld or presentation scanner, an additional and handy feature. The imager is available with two multi-interface options: USB, keyboard wedge, RS232 and scanner emulation, or with IBM46XX, USB and RS232, which is particularly suitable for use in POS systems. Both interface combinations offer configuration flexibility and are easily adjustable to host system adaptations. There is also the IBM version optionally with integrated EAS antenna. Embedded in the existing Electronic Article Surveillance (EAS) system, the scanner directly deactivates the tags of protected products during scanning, reducing losses from shoplifting in an especially ergonomic manner.
Features
- Linear imager for commerce, offices, hospitals
- Reads all 1D and GS1 data barcodes with high resolution of up to 3 mils
- op read rate (325 decodes/sec.)
- Wide scan angle (42°) for large codes
- All interface types in one device: USB, RS232 and keyboard wedge; EAS deactivation optional
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
China Post |
| Stacked Codes |
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional |
| Current |
Operating (Typical): GD4110: 225 mA @ 5 VDC;
GD4130: 245 mA @ 5 VDC
Standby/Idle (Typical): 120 mA @ 5 VDC |
| Input Voltage |
GD4110: 4.5 – 14.0 VDC; GD4130: 4.75 – 5.25 VDC |
| Ambient Light |
0-100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
0-90% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 55 °C / 32 to 131°F
Storage/Transport: -20 to 70 °C / -4 to 158 °F |
| Interfaces |
RS-232 / IBM 46XX / USB Multi-Interface;
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface |
| Optional Features |
EAS Features
Checkpoint Systems: GD4110-WH EAS |
| Colors Available |
Black; White |
| Dimensions |
18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in |
| Weight |
169.0 g / 6.0 oz |
| Image Sensor |
CCD Solid-State |
| Light Source |
Illumination: LED Array 630 – 670 nm |
| Print Contrast Ratio (Minimum) |
15% |
| Read Rate |
325 reads/sec |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 35°; Skew (Yaw): +/- 65° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED, |
| Resolution (Maximum) |
0.076 mm / 3 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| LED Classfication |
IEC 60825-1 Class 1 LED Product |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
5-Year Factory Warranty |
