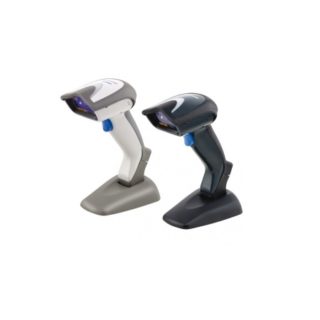

The Gryphon I GD4400 is at the top of its class of handheld scanners for general scanning purposes. Its omni-directional reading range allows it to capture all common 1D and 2D, as well as postal and stacked codes. According to its purpose choose between the variants with standard or HD resolution. The Datalogic Motionix technology reacts to all movement and the condition of the scanner, switching automatically between handheld or stand mode. Thanks to its built-in tiltable stand (depending on version), it can bend to your liking. The all-in-one imager can be used at any stand angle and for individual scanning needs.
The practical and highly visible 4-dot aimer shows the precise reading zone. With its central target aimer, scan a clearly defined area from lists and other surroundings in which multiple barcodes are situated next to each other in cramped spaces. Its patented »Green Spot«, plus a noticeable beep, confirm the scan both visually and acoustically.
This gives the user the security that each scan is performed successfully. Multiple scans and the resulting software mistakes are avoided, and the result is significantly increased efficiency. The comfortable dark red scanning light is easy on the user’s eyes, effectively preventing excessive tiredness. Its image capture ensures reliable document scanning, including signatures. You therefore do not need additional hardware, since the Gryphon GD4400 fulfills all these duties with excellent precision.
The housing of the GD4400 is highly robust and withstands numerous falls without suffering damage, even from a height of 1.8 m. Even in an environment at 50°C the Gryphon is fully functional and delivers reliable performance. This flexibility also allows it to be used in applications for production and in light industry.
For easy integration into existing environments you have multiple variants with multi-interface to choose from. Decide for an RS232, IBM and USB interface, or an RS232, USB and KBW interface.
Features
- Professional 2D scanner with Motionix motion sensing technology for automatic handheld/stand mode switching
- Flexible implementation, thanks to its integrated tiltable stand
- Target aimer and 4-dot aimer for exact scanning; improved illumination technology
- Patented Datalogic »Green Spot« reading confirmation
- Signature capture and document scanning
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| 2D Codes |
Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Current |
Operating (Typical): GD4410: < 170 mA @ 5 VDC;
GD4430 < 160 mA @ 5 VDC
Standby/Idle (Typical): 65 mA @ 5 VDC |
| Input Voltage |
GD4410: 4.0 – 14.0 VDC; GD4430: 4.2 – 5.25 VDC |
| Ambient Light |
0 – 100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
5-95% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F |
| Interfaces |
GD4410: RS-232 / IBM 46XX / USB Multi-Interface
GD4430: RS-232 / USB / Keyboard Wedge / Wand Multi-Interface |
| Colors Available |
Black; White |
| Dimensions |
18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in |
| Weight |
195.0 g / 6.9 oz |
| Image Capture |
Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| Imager Sensor |
Wide VGA: 752 x 480 pixels |
| Light Source |
650 nm VLD |
| Motion Tolerance |
25 IPS |
| Print Contrast Ratio (Minimum) |
25% |
| Reading Angle |
Pitch: +/- 40°; Roll (Tilt): 180°; Skew (Yaw): +/- 40° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution (Maximum) |
High Density (HD): 1D Linear: 0.077 mm / 3 mils; Data Matrix: 0.127 mm / 5 mils; PDF417: 0.102 mm / 4 mils
Standard Range (SR): 1D Linear: 0.102 mm / 4 mils; Data Matrix: 0.178 mm / 7 mils; PDF417: 0.102 mm / 4 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
GD4400 Standard Range (SR)
Code 39: 5 mils: 4.0 to 19.0 cm / 1.6 to 7.5 in
Code 39: 10 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in
Data Matrix: 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in
Data Matrix: 15 mils: 0 to 23.6 cm /0 to 9.3 in
EAN-13: 13 mils: 1.5 to 40.0 cm / 0.6 to 15.7 in
PDF417: 10 mils: 0.5 to 22.0 cm / 0.2 to 8.6 in
QR Code: 10 mils: 3.0 to 12.5 cm / 1.2 to 4.9 in
GD4400 High Density (HD)
Code 39: 3 mils: 2.4 to 9.1 cm / 0.9 to 3.6 in
Code 39: 5 mils: 0.8 to 11.3 cm / 0.3 to 4.5 in
Data Matrix: 5 mils: 2.8 to 6.1 cm / 1.1 to 2.4 in
EAN-13: 13 mils: 1.1 to 17.2 cm / 0.4 to 6.8 in
PDF417: 4 mils: 1.8 to 6.8 cm / 0.7 to 2.7 in
PDF417: 10 mils: 0 to 14.3 cm / 0 to 5.6 in
QR Code: 6.7 mils: 2.1 to 4.2 cm / 0.8 to 1.7 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Laser Classfication |
Caution Laser Radiation – Do not stare into beam; IEC 60825 Class 2 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
5-Year Factory Warranty |
