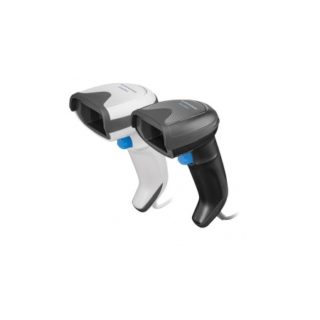

Thanks to its outstanding design, ergonomics and broad feature set, the Gryphon GD4500 product series from Datalogic represents the premium level of handheld scanners for general purpose applications. The device captures 1D, 2D and optionally Digimarc barcodes at a rapid pace. The retail POS-checkout is its natural environment; however, a variety of options and its overall ruggedness open the door to specific, significant applications in manufacturing, healthcare, transportation and logistics verticals. Users’ productivity and performance is increased due to the high-resolution megapixel sensor for extraordinary reading results – coupled with the distinctive warm white illumination technology from Datalogic.
Thanks to excellent Motionix motion-sensing technology, the intuitive, easy to use GD4500 detects natural movements in fractions of a second and switches directly to the scan mode that is necessary – whether it is in the cradle or in manual mode. It provides superior scanning speed and depth of field, which helps during the capture of poorly readable or damaged barcodes. Operators will find the Gryphon GD4500 extremely easy and intuitive to use.
Features
- All-purpose barcode scanner for small warehouses, retail and pharmacies
- High-resolution megapixel sensor for outstanding results
- Captures 1D, 2D and optionally also Digimarc barcodes
- Distinctive warm white Datalogic illumination technology
- Datalogic Motionix motion-sensing technology
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| 2D Codes |
Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Digital Watermarking |
Digimarc Barcodes |
| Current |
Operating::<300 mA @ 5V; < 200 mA @ 12V
Standby/Idle: < 90 mA @ 5V; <50 mA @ 12V |
| Input Voltage |
GD4520: 5 VDC
GD4590: 4.5 – 14.0 VDC |
| Ambient Light |
0 – 100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.8 m / 6 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
0-95% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
GD4520: USB only
GD4590: RS-232 / USB / Keyboard Wedge Multi-Interface |
| Colors Available |
Black; White |
| Dimensions |
16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in |
| Weight |
161.0 g / 5.7 oz |
| Image Capture |
Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| Imager Sensor |
1 Megapixel: 1280 x 800 pixels |
| Light Source |
Aiming: Red Laser 650 nm
Illumination: Warm White; Hyper Red LED for Digimarc |
| Motion Tolerance |
35 IPS |
| Print Contrast Ratio (Minimum) |
15% |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Dual Good Read LED, |
| Resolution (Maximum) |
High Density (HD): 1D Linear: 0.077 mm / 3 mils;PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils
Standard Range (SR): 1D Linear: 0.102 mm / 4 mils; PDF417: 0.127 mm / 5 mils; Data Matrix: 0.195 mm / 7.5 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
GD4500 Standard Range (SR)
Code 39: 5 mils: 7.0 to 38.0 cm / 2.7 to 14.9 in
Code 39: 10 mils: 2.2 to 58.0 cm / 0.8 to 22.8 in
Data Matrix: 10 mils: 5.5 to 27.0 cm / 2.2 to 10.6 i
Data Matrix: 15 mils: 2.8 to 41.0 cm / 1.1 to 16.1 in
EAN-13: 13 mils: 1.0 to 71.0 cm / 0.4 to 27.9 in
PDF417: 10 mils: 2.5 to 41.0 cm / 1.0 to 16.1 in
QR Code: 10 mils: 5.5 to 24.0 cm / 2.2 to 9.5 in
GD4500 High Density (HD)
Code 39: 3 mils: 5.0 to 15.0 cm / 2.0 to 5.9 in
Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in
Data Matrix: 5 mils: 5.5 to 9.0 cm / 2.2 to 3.5 in
Data Matrix: 10 mils: 2.0 to 27.0 cm / 0.8 to 10.6 in
EAN-13: 7.5 mils: 2.0 to 23.5 cm / 0.8 to 9.3 in
EAN-13: 13 mils: 1.0 to 40.0 cm / 0.4 to 15.7 in
PDF417: 4 mils: 3.0 to 12.0 cm / 1.2 to 4.7 in
PDF417: 10 mils: 0.5 to 31.0 cm / 0.2 to 12.2 in
QR Code: 10 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Laser Classfication |
Caution Laser Radiation – Do not stare into beam; IEC 60825 Class 2 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
5-Year Factory Warranty |
