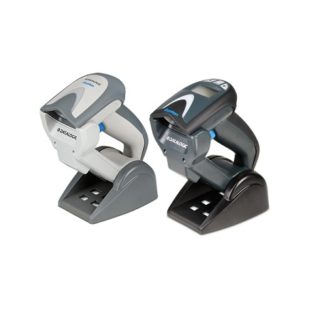

The linear imager Gryphon I GM4100 extends Datalogic’s premium line with a high-performance wireless version. This robust handheld scanner is especially suited for applications in retail and light industry, as it offers unlimited mobility and guarantees efficient and productive barcode scanning.
Equipped with the same scanning specifications as the wired Gryphon I, the M version transmits scanned data at 433 MHz. The integrated memory saves up to 1,200 codes, even when used out of communication range. In addition to simple point-to-point applications, the GM4100 is also capable of complex network operations.
The patented 2-position stand is a hands-free station and charger in one. Using its integrated lithium-ion battery, scan up to 50,000 codes per charge. In order to increase mobile scanning efficiency even further, an optional version with display and a keypad with three keys is available, to use for active host communication.
Features
- Wireless linear imager for retail and light industry
- Up to 30 m operating range using wireless transmission (433 MHz)
- Fast scanning at 325 scans/sec.
- Scanning memory for up to 1,200 codes when used outside of operating range
| Datalogic Star Cordless System |
Effective Radiated Power: 433.92 MHz: < 10 mW; 910 MHz: < 1 mW
Multi-Point Configuration: Max. Readers per Radio Receiver: 16
Point-to-Point Configuration; Radio Frequency: 433.92 MHz; 910 MHz |
| Radio Range |
433.92 MHz: 30.0 m / 98.4 ft; 910 MHz: 15.0 m / 49.2 ft;
Two Way Communication |
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
China Post |
| Stacked Codes |
GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional |
| Battery |
Battery Type: Lithium-Ion, 2100 mAh;
Charge Time: External Power: 4 Hours @ 12 VDC;
Reads per Charge: 50,000 |
| Cradle Indicator Leds |
Battery Charging (Red); Charge Completed (Green);Power/Data (Yellow) |
| Current |
Charging (Typical): < 8 W;
Operating (Typical): < 2.5 W @ 5 VDC;
Standby/Idle (Typical): < 2.5 mA @ 5 VDC |
| Input Voltage |
4.75 – 14 VDC +/- 5% |
| Ambient Light |
100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
5-95% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F |
| Interfaces |
RS-232 / IBM 46XX / USB Multi-Interface;
RS-232 / USB / Keyboard Wedge / Wand Multi-Interface |
| Optional Features |
Counterfeit Detection
BC4010-BK-910-CF; BC4010-BK-433-CF;
Field of View: 20º; UV LEDs: 8
Input Current (Maximum): 25 mA;
Optical Power: 19-26 mW @ 20 mA |
| Colors Available |
Black; White |
| Dimensions |
Cradle: 18.6 x 9.9 x 5.6 cm / 7.25 x 3.9 x 2.2 in
Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in |
| Display |
Display Type: GM4100-D Only: Graphic with backlight;
Font Dimensions: User selectable (4 lines x 16 columns default)
Screen Dimensions: 32 x 96 pixels |
| Keypad |
GM4100-D Only: 3-Key Keypad |
| Weight |
Cradle: 246 g / 8.7 oz; Reader: 246 g / 8.7 oz |
| Light Source |
Illumination: LED Array 630 – 670 nm |
| Print Contrast Ratio (Minimum) |
15% |
| Read Rate |
325 reads/sec |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 35°; Skew (Yaw): +/- 65° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED, |
| Resolution (Maximum) |
0.076 mm / 3 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in
7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in
10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in
13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in
20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| LED Classfication |
IEC 60825-1 Class 1 LED Product |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
3-Year Factory Warranty |
