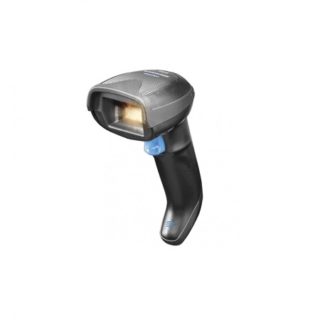

Rely on the barcodes scanner Gryphon! Whether in the retail, logistics, transportation, pharmacy or hospitality industry, the Datalogic Gryphon GM4500 is everyone’s favorite, thanks to its proactive scanning capabilities. The handheld scanner fits just as good in the left as in the right hand, impresses with an elegant design, is intuitive to use and convinces with its inner values!
The Gryphon is equipped with a new wireless charging function which allows the barcode scanner to be charged quickly and easily via induction. Since it has no charging port, it is less fragile and more durable. Scanned data is transmitted wirelessly via narrow band radio, thanks to Datalogic’s Star Cordless System.
The Gryphon scans 1D, 2D and optionally also Digimarc barcodes at a rapid speed – and with eye-friendly, white backlighting. This type of illumination is better for reading low-contrast, colored barcodes. The Gryphon has a very high depth of field, with which it also captures poorly readable or damaged barcodes in no time. Thanks to Datalogic Motionix motion sensors, it automatically switches during scanning between the scan mode currently needed in handheld mode or in the stand.
The barcode scanner is particularly robust, thanks to its IP52 certification and resistance to falls from heights of up to 1.8 m. Its charging/transfer station has a multi-interface with USB, RS-232 and a keyboard wedge.
Features
- Imaging technology for 1D and 2D barcodes (Digmarc optional)
- Proximity charging for longer durability
- High-resolution megapixel sensor
- Motion sensor with Datalogic Motionix technology
- Also available as a healthcare version
| Datalogic Star Cordless System |
Effective Radiated Power: 433.92 MHz: < 6.3 mW, 910 MHz: < 50 mW
Multi-Point Configuration: Max. Readers per
Radio Receiver: 16; Point-to-Point Configuration;
Radio Frequency: 433.92 MHz; 910 MHz;
Two Way Communications
Radio Range (Open Air): 50.0 m / 164.0 ft |
| Bluetooth Wireless Technology |
Piconet: Max. Readers per Radio Receiver: 7
Profiles: SPP (Serial Port Profile)
Protocol: Bluetooth 4.0 with BLE Certified Class 1,Class 2 and Class 3; Radio Frequency: 2.4 GHz
Radio Range (Open Air): 100.0 m / 328.0 ft; Range distances are measured using the base station.
Range with connection to other Bluetooth peripherals may show different results.
Security: Data Encryption; Scanner Authentication |
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. |
| 2D Codes |
Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code |
| Postal Codes |
Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; UPC A/E Composites; MacroPDF; MicroPDF417; PDF417 |
| Digital Watermarking |
Digimarc Barcodes |
| Battery |
Battery Type: Lithium-Ion 3250mAh
Charge Time: External Power: 4 hrs @ 12 VDC;
Reads per Charge: 80,000 + |
| Cradle Indicator LEDs |
Battery Charging (flashing orange); Charge Completed (steady green |
| Current |
Charging (Typical): < 6 W;
Scanner only: 330 mA @ 3.7 V (Operative)
Cradle only: 80 mA @ 5 V (Operative) |
| Input Voltage |
4.5 – 14 VDC +/- 5% |
| Ambient Light |
0 – 100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
0-95% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
Keyboard Wedge Multi-Interface/ RS-232 / USB |
| Colors Available |
Black, White |
| Dimensions |
16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in |
| Weight |
235 g / 8.29 oz |
| Image Capture |
Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
| Imager Sensor |
1 Megapixel: 1280 x 800 pixels |
| Light Source |
Aiming: Red Laser 650 nm
Illumination: Warm White; Hyper Red LED for Digimarc |
| Motion Tolerance |
35 IPS |
| Print Contrast Ratio (Minimum) |
15% |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): +/- 360°; Skew (Yaw): +/- 65° |
| Reading Indicators |
Beeper (adjustable tone); Vibration feedback option available for quiet places; Datalogic Three Green Lights (3GL) Good Read Feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs |
| Resolution (Maximum) |
High Density (HD): 1D Linear: 0.077 mm / 3 mils;
PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils
Standard Range (SR): 1D Linear: 0.102 mm / 4 mils;
PDF417: 0.127 mm / 5 mils; Data Matrix: 0.195 mm / 7.5 mil |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
Code 39: 5 mils: 7.0 to 38.0 cm / 2.7 to 14.9 in
Code 39: 10 mils: 2.2 to 58.0 cm / 0.8 to 22.8 in
Data Matrix: 10 mils: 5.5 to 27.0 cm / 2.2 to 10.
Data Matrix: 15 mils: 2.8 to 41.0 cm / 1.1 to 16.1
EAN-13: 13 mils: 1.0 to 71.0 cm / 0.4 to 27.9 in
PDF417: 10 mils: 2.5 to 41.0 cm / 1.0 to 16.1 in
QR Code: 10 mils: 5.5 to 24.0 cm / 2.2 to 9.5 in
|
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS,Complies to EU RoHS |
| Laser Clasification |
Caution Laser Radiation – Do not stare into beam; IEC 60825 Class 2 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
3-Year Factory Warranty |
