Compact and complete

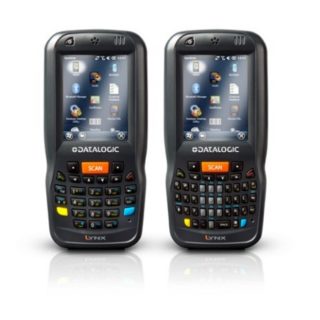

The Lynx PDA combines the latest technology in a pocketable and robust package. This state-of-the-art PDA features an 806 MHz processor with 256 MB RAM and 512 MB Flash, all delivered in the industry’s most appreciated ergonomic form factor. The Lynx PDA has handy LED’s to provide instant status on battery charging, good read indicator and keyboard state. It offers a vibrator for customizable alerts and an accelerometer to automatically orient the display.

Indoor and outdoor reliability

The Lynx PDA offers excellent aesthetics complimented by industrial robustness that survives indoor and outdoor usage. A high drop resistance rating ensures the ruggedness of the Lynx PDA.

Data capture

The Lynx PDA comes equipped with either a 1D laser scanner or a 2D bar code imager. For emerging applications requiring evidence of task execution or damaged documentation, an autofocus camera is included with a built-in flash providing a solution to collect and document with photos.

Wireless communications

The Lynx wireless technology provides four radios with internal antennas: Bluetooth® EDR for fast and close data connections, 802.11 b/g/n Cisco CCX v4 certified for quick wireless network access, 3G/4G (HSPA+) for real-time wide area communication and Assisted GPS (A-GPS) with Qualcomm gpsOneXTRA Assistance technology for location based applications.

Develop, deploy, direct

The Lynx PDA integrates the latest Microsoft operating system using Windows Embedded Handheld 6.5 for mobile devices. This industry leading operating system is complimented by Wavelink Avalanche to enable fast configuration and deployment.

Features

Ergonomic, compact and robust
Microsoft Windows Embedded Handheld 6.5
Qualcomm gpsOneXTRA Assistance technology for location-based applications
3G/4G (HSPA+) mobile radio for voice and data communication
Summit embedded 802.11 b/g/n radio Cisco CCX v4 certified for enterprise-class mobile connectivity
Bluetooth wireless technology Class 2 with EDR for simultaneous connections with lower power consumption
Laser or wide aspect 2D imager
3 Megapixel autofocus camera with flash
256 MB RAM / 512 MB Flash memory
XScale PXA 310 @ 806 MHz processor
User-accessible micro SD memory slot (SDHC)
Ruggedized with 1.2 m / 4 ft drop to concrete resistance and IP54 protection class
Wavelink Avalanche device management pre-licensed
EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI

Industry Applications

Retail:Merchandising, Pricing, Stock Management, Inventory, Assisted Sales and Gift Registry
T&L: Route Accounting, Direct StoreDelivery, Work Force Management,Courier Value-added Services and Ticket Verification
Manufacturing:Electronics & Computers/Food & Beverage Merchandising, Field Sales and Management
Hospitality/Entertainment: Cinemas, Theaters, Museums, Events, Travel, Leisure and Ticket Verification
Services:Commercial Services, Library Management

Specifications

</tr

Local Area Network (WLAN)	Summit IEEE 802.11 b/g/n Cisco CCX v4 certified Frequency range: Country dependent, typically 2.4 GHz bands
Personal Area Network (WPAN)	Bluetooth Wireless Technology IEEE 802.15 v2.0 with EDR
Wide Area Network (WWAN)	3G/4G (HSPA+), 4G when used on AT&T network with enhanced backhaul: 800/850/900/1900/2100 MHz; GSM/GPRS/EDGE: 850, 900, 1800, 1900 MHz for voice and data communication; SIM socket under the battery
Global Position System (GPS)	Integrated Assisted-GPS (A-GPS) with Qualcomm gpsOneXTRA Assistance technology
1D / Linear Codes	Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.
2D Codes	Aztec Code, Data Matrix, MaxiCode, QR Code, UPU FICS, USPS Intelligent Mail
Postal Codes	Australian Post, Japan Post, KIX Post; Planet Code, Postnet; Royal Mail Code (RM4SCC)
Stacked Codes	GS1 DataBar Composites, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, MicroPDF417, PDF417,GS1 DataBar Stacked Omnidirectional
Battery	Removable battery pack with rechargeable Li-ion batteries Standard: 3.7 V; 1800 mAh (6.7 Watt-hours) Extended: 3.7 V; 3600 mAh (13.3 Watt-hours)
Drop Resistance	Withstands drops from 1.2 m / 4.0 ft onto concrete
Particulate And Water Sealing	IP54
Temperature	Operating: 0 to 50 ºC / 32 to 122 ºF Storage/Transport: -20 to 70 ºC / -4 to 158 ºF
Interfaces	Micro-USB connector: USB 1.1 Client and USB 1.1 Host Handylink connector: integrated RS-232 up to 115.2 Kbps, USB 1.1 Client, USB 1.1 Host Ethernet: via single dock (external module) or multiple cradle
Dimensions	With Standard Battery: 14.4 x 6.8 x 2.7 cm / 5.6 x 2.6 x 1.0 in With Hi-Capacity Battery: 14.4 x 6.8 x 3.3 cm / 5.6 x 2.6 x 1.3 in
Display	TFT-LCD color display QVGA: 320 x 240 pixels 2.7 in diagonal 262, 144 color display capability Full Graphics with backlight Touch Screen
Keyboard	27-key Numeric or 46-key QWERTY backlit keyboard standard; Side scan keys and volume setting
Weight	With Standard Battery: 270.0 g / 9.5 oz With Hi-Capacity Battery: 300.0 g / 10.6 oz
Camera	Resolution: 3 megapixel Illumination: User controllable flash Lens: Auto focus
Imaging	Optical Resolution: Linear codes: 4 mils; 2D codes: 5 mils; Scan Rate: 60 frames/sec maximum Depth of Field: 3.5 to 41.5 cm / 1.4 to 16.4 in, depending on bar code density and type Resolution: VGA (752 H x 480 V pixels), 256 gray scale Image Format: BMP, JPEG
Laser	Scan Rate: 104 +/- 12 scan/sec Optical Resolution: 0.10 mm / 4 mils Depth of Field: 3 to 62 cm / 1.2 to 24.4 in, depending on bar code density
Agency Approvals	The product meets necessary safety and regulatory approvals for its intended use.
Environmental Compliance	Complies to EU RoHS
Laser Classification	VLD – Class 2 IEC/EN60825-1; Compliant with 21 CFR 1040.10 except for deviations pursuant to laser notice No. 50 dated June 24, 2007.
Applications	Pal Application Library Vo-CE (voice recognition) Wavelink SpeakEasy (voice recognition) Wavelink Industrial Browser
Configuration & Maintenance	Wavelink Avalanche pre-licensed Avalanche Remote Control Avalanche SecurePlus Datalogic Firmware Utility (DFU) Datalogic Desktop Utility (DDU) Datalogic Configuration Utility (DCU) Datalogic Locked Browser (WAL)
Development	Datalogic Windows SDK MCL-Collection Wavelink Studio Java Virtual Machine
Terminal Emulation	Wavelink Terminal Emulation Wavelink ConnectPro
Microprocessor	XScale PXA310 @ 806 MHz
Memory	System RAM: 256 MB System Flash: 512 MB
Real-time Clock	Time and date stamping under software control
Expansion Slots	Micro-SD card slot: Compatible with Micro SD-HC cards; User-accessible
Operating System	Microsoft Windows Embedded Handheld 6.5 with Mobile Tools: Outlook, Word Mobile, Excel Mobile, PowerPoint Mobile, One Note Mobile and Internet Explorer Mobile 6.0
Warranty	1-Year Factory Warranty
