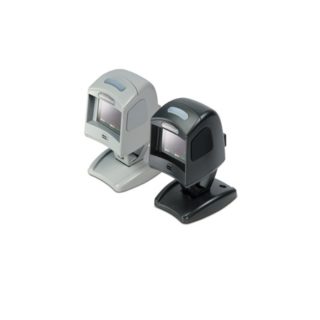

The Magellan is one of the most robust and compact presentation scanners on the market and has been an established player for a long time in retail, healthcare, libraries, as well as logistics. With the Magellan 1100i, you get an omnidirectional, on-counter scanner that impresses both in manual as well as counter operation through high processor and scan performance. It reliably reads 1D and 2D codes as well as images (different versions available) through improved imaging technology. The Illumix lighting technology further improves ergonomics provided by the patented Green Spot scan confirmation. This feature allows the device to also read codes from backlit surfaces such as mobile phones, PDAs or screen surfaces, whether in extremely dark or bright surroundings.
Versions with a trigger and a targeting mode for scanning from lists, as well as optional EAS deactivation expand the application possibilities of the robust scanner (IP52) enormously. The device operates without moveable parts, making it an all-rounder in logistics and production. A quick pass over a surface or targeted selection of information increases the speed and provides for extremely efficient operation. A multi-interface and various stand options give you the necessary flexibility.
Features
- Omnidirectional presentation scanner for retail, laboratories and logistics
- Fast processor and high scan rates for better reading performance of 1D and 2D barcodes
- High performance through imaging technology and »Green Spot«
- Illumix lighting technology recognises barcodes from laptops, mobile phones, PDAs and monitors
1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. |
Stacked Codes |
GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; |
2D Codes |
Aztec Code; Data Matrix; QR Code, Maxi Code |
Current |
Operating (Typical): < 400 mA
Standby/Idle (Typical): < 300 mA |
Input Voltage |
4.5 – 14.0 VDC |
Ambient Light |
Indoor: 0 to 6,000 lux;
Outdoor: 0 to 86,100 lux |
Drop Resistance |
Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface |
ESD Protection (Air Discharge) |
25kV |
Humidity (Non-condensing) |
5-95% |
Particulate And Water Sealing |
IP52 |
Temperature |
Operating: 0 to 40 °C / 32 to 104 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
Interfaces |
IBM 46xx; Keyboard Wedge; OEM (IBM) USB; RS-232,USB |
EAS Features |
Checkpoint Systems: Integrated EAS Antenna for Counterpoint IX and Evolve D11 models.
Sensormatic: Good Read Acknowledgement |
Value Added Features |
Diagnostic Reporting; Host Download; Productivity Index Reporting (PIR) |
Colors Available |
Black; Grey; Other colors and custom logo options are available for minimum quantity purchase |
Dimensions |
Riser Stand: 5.9 x 7.6 x 9.7 cm / 2.3 x 3.0 x 3.8 in
Scanner: 8.4 x 7.1 x 9.4 cm / 3.3 x 2.8 x 3.7 in |
Weight |
Riser Stand: 187.1 g / 6.6 oz
Scanner: 198.5 g / 7.0 oz |
Image Capture |
Optional: 752 x 480 pixels; Graphic Formats: JPEG |
Print Contrast Ratio (Minimum) |
25% |
Read Rate(Maximum) |
1,768 digital scan lines/sec |
Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 0 – 360°; Skew (Yaw): +/- 75° |
Resolution (Maximum) |
130 mm / 5 mils |
Scan Lines |
Digital: 136 |
Depth of Field |
Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
1D / Linear Codes
5 mils: 1.3 to 4.6 cm / 0.5 to 1.8 in
7.5 mils: 0.63 to 5.71 cm / 0.25 to 2.25 in
10 mils: 0 to 12.7 cm / 0 to 5.0 in
13 mils UPC: 0 to 17.7 cm / 0 to 7.0 in
20 mils: 0 to 17.7 cm / 0 to 7.0 in
Optional Codes
6.6 mils PDF: 3.8 to 7.6 cm / 1.5 to 3.0 in
10 mils Data Matrix: 0 to 4.5 cm / 0 to 1.8 in
10 mils PDF: 3.1 to 15.2 cm / 1.2 to 6.0 in
15 mils PDF: 2.5 to 15.2 cm / 1.0 to 6.0 in
24 mils Data Matrix: 0 to 12.7 cm / 0 to 5.0 in |
Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
Environmental Compliance |
Complies to EU RoHS |
LED Classification |
IEC 60825-1 Class 1 LED |
OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
Remote Host Download |
Lowers service costs and improves operations. |
Warranty |
2-Year Factory Warranty |
