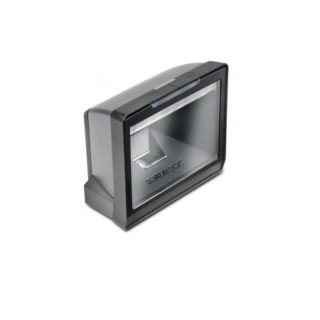

The on-counter scanner Magellan 3200VSi completely redefines bar code scanning at the checkout: as a professional imager for 2D and GS1 codes, it delivers tremendous results when scanning difficult-to-read bar codes, e.g. ripped or poorly printed ones – at a speed that up until now only laser scanners could boast. The intelligent lighting technology Illumix provides maximum productivity and ergonomic operation, reading even from mobile phones, PDAs and computer monitors.
Due to the powerful imager technology, most of the scanner functions are software based, making management and configuration simple using diverse tools. Another advantage: the extremely fast imager has no moving components, laser modules or rotating motors, thereby guaranteeing particular long-lasting and smooth operation over many years. Both a micro-SD slot as well as various interfaces (IBM, USB, RS232, powered USB) are on-board, standard.
Features
- Vertical presentation scanner with powerful imaging technology
- High-speed scanning of linear and 2D bar codes
- Extremely durable: no moving components
- Quick adaption using software-based configuration
- Diverse interfaces and micro-SD slot on-board, standard
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. |
| Stacked Codes |
GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417; |
| 2D Codes |
Aztec Code; Data Matrix (ECC200 Only); QR Code, Maxi Code |
| AC Power Requirements |
AC Input: 90 – 264 VAC, 47-63 Hz
Power Consumption: Operating (Nominal): 2.8 Watts,Operating (Maximum): 8.75 Watts
Sleep Mode: 2 Watts |
| Ambient Light |
0 – 86,100 lux |
| ESD Protection (Air Discharge) |
25kV |
| Humidity (Non-condensing) |
5-95% |
| Temperature |
Operating: 0 to 40 °C / 32 to 104 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
IBM 46xx; Keyboard Wedge; OEM (IBM) USB; RS-232,USB |
| Auxiliary Ports |
Powered RS-232 |
| EAS Features |
Checkpoint Systems: Integrated EAS Antenna for Counterpoint IX and Evolve D11 models.
Sensormatic: Good Read Acknowledgement |
| Value Added Features |
Diagnostic Reporting; Host Download;
Productivity Index Reporting (PIR) |
| Dimensions |
14.2 x 15.2 x 8.2 cm / 5.6 x 6.0 x 3.2 in |
| Weight |
0.6 kg / 1.3 lb |
| Image Capture |
Graphic Formats: BMP, JPEG; |
| Imager Sensor |
1280 x 1024 |
| Light Source |
Illumination: Multiple diffused 625 nm LEDs |
| Print Contrast Ratio (Minimum) |
25% |
| Read Height |
14.0 cm / 5.5 in |
| Read Rate(Maximum) |
39 Million pixels per second |
| Reading Indicators |
Beeper (Adjustable Tone and Volume), Good Read LED, Good Transmission |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 0 – 360°; Skew (Yaw): +/- 75° |
| Resolution (Maximum) |
5 mils |
| Depth of Field |
Minimum distance determined by symbol length and scan angle.
Printing resolution, contrast, and ambient light dependent.
1D / Linear Codes
5 mils: 1.3 to 6.4 cm / 0.5 to 2.5 in
7.5 mils: 1.3 to 11.4 cm / 0.5 to 4.5 in
10 mils: 0 to 15.2 cm / 0 to 6.0 in
13 mils: 0 to 20.3 cm / 0 to 8.0 in
20 mils: 0 to 22.9 cm / 0 to 9.0 in
2D Codes (Optional)
6.6 mils: PDF: 3.8 to 10.2 cm / 1.5 to 4.0 in
10 mils: PDF: 0 to 18.0 cm / 0 to 7.0 in
15 mils: PDF: 0 to 20.3 cm / 0 to 8.0 in
10 mils: Data Matrix: 0 to 6.4 cm / 0 to 2.5 in
24 mils: Data Matrix: 0 to 20.3 cm / 0 to 8.0 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS,Complies to EU RoHS |
| LED Classification |
EN60825-1 Class 1 LED; IEC 60825-1 Class 1 LED Product |
| Magellan OSP |
Magellan On-Screen Programming (OSP) configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
3-Year Factory Warranty |
