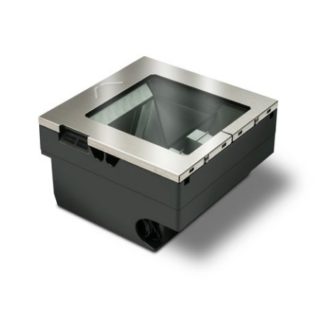

In-counter high performance bar code reader
The Magellan 3400VSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3500VSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques, ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
Enhancing the customer experience
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
Enterprise features
Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Features
- Advanced digital imaging provides class-leading performance and reliability
- Seamless 1D, 2D and Digimarc® digital watermark reading
- Smoothly reads all bar codes, whether displayed on cell phones or printed
- Subtle, adaptive illumination for user comfort
- Solid-state electronics for silent operation and superior reliability
- Available Magellan Customer Service Scanner (CSS) with omni-mount for reading cell phones, coupons and loyalty cards
- Software driven – flexible and upgradeable
- Image capture
- Micro SD card slot
- Multiple interfaces in every unit
- Powered USB auxiliary port
- Checkpoint Systems and Tyco Sensormatic EAS compatible
- Diagnostics reporting
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI
Industry Applications
- Retail
- Point of Sale
- Mobile Marketing Capabilities
- Age Verification
- 2D Bar Codes
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. |
| 2D Codes |
Aztec Code; Data Matrix (ECC200 only); MaxiCode; QR Code |
| Stacked Codes |
GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417 |
| Digital Watermarks |
Optional support for Digimarc Barcode/GS1 DW Code |
| AC Power Requirements |
AC Input: 100-240 VAC, 50-60 Hz; |
| Power Consumption |
Operating (Maximum): 4.0 Watts;
Operating (Nominal): 3.0 Watts
Sleep Mode: 2.8 Watts |
| Ambient Light |
0 – 86,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
2t kV |
| Humidity (Non-condensing) |
5-95% |
| Particulate And Water Sealing |
IP52 |
| Temperature |
Operating: 0 to 40 °C / 32 to 104 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
OEM (IBM) USB, RS-232, USB Keyboard, USB Com |
| Auxiliary Ports |
Powered Type A USB (USB Com) |
| EAS Features |
Checkpoint Systems: Integrated EAS hardware will work with Counterpoint IX and Evolve D11 models
Sensormatic: Good Read Acknowledgement |
| Value Added Features |
Diagnostic Reporting, Host Download, Magellan ULE Scripting |
| Dimensions |
Depth (Below Counter): 8.7 cm / 3.4 in
Length: 15.2 cm / 6.0 in
Width: 15.2 cm / 6.0 in |
| Weight |
0.98 kg /2.16 lb |
| Image Capture |
Graphic Formats: BMP, JPEG |
| Imager Sensor |
1280 x 1024 |
| Light Source |
Multiple diffused LEDs, orientation and wavelength optimized for eye comfort |
| Print Contrast Ratio (Minimum) |
25% |
| Read Height |
10.2 cm / 4.0 in |
| Read Rate |
39 Million pixels per second |
| Reading Indicators |
Audio speaker with adjustable tone and volume, supports .wav files.
Good Read LED,Good Transmission |
| Resolution (Maximum) |
5 mil |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use. |
| Environmental Compliance |
Complies to EU RoHS,Complies to China RoHS |
| LED Classification |
EN62471 and IEC62471 Lamp Illumination – Exempt Group |
| Scanalyzer |
Magellan Scanalyzer configuration software is available for download at www.datalogic.com. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Warranty |
3-Year Factory Warranty |
