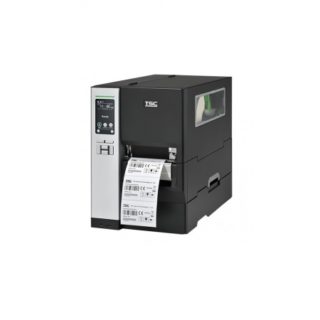

TSC MH240 Series

Drop us a line

The mid-range direct thermal/thermal transfer printers of the TSC MH240 Series are excellently suited for warehouses and logistics. They manage a print width of 104 mm and are available in three different versions, which in turn also have three different print resolutions – 203, 300 or 600 dpi. All in all, the series comprises nine models.

The standard version of the MH240 Series produces labels up to 356 mm/sec. A 3.5’’ LCD panel with six buttons shows all the information and messages at a glance, and convinces with intuitive operation. A two-color, highly visible LED informs you about the current status of the device.

With the extended version MH240T, a color 4.3’’ touch display replaces the LCD panel, making it even easier to use. All models of the MH240 Series have two USB ports on the front to conveniently connect peripherals, such as a keyboard or barcode scanner. Other interfaces on the back connect the printer to the host: you choose between RS232, Ethernet or USB 2.0. WLAN, parallel and GPIO are optionally available factory-direct or as a separate interface.

The premium variant MH240P is additionally equipped with a rewinder. This wraps the printed labels inside the device on a 3’’ core for easy removal and direct further processing. An optional near-end sensor allows you to swap media capacity, even without tools.

Key Features

High-performance label printers for warehouses and logistics
Triple interface integrated ex works: RS232, Ethernet and USB 2.0
Speed: up to 356 mm/sec, at 203 dpi
Resolution: available with 203, 300 and 600 dpi
Optionally with practical touch display for intuitive handling

Specifications

Printer Model	MH240	MH340	MH640
Resolution	8 dots/mm (203 DPI)	12 dots/mm (300 DPI)	24 dots/mm (600 DPI)
Printing method	Thermal Transfer & Direct Thermal
Max. print speed	356 mm (14”)/second	305 mm (12)/second	152 mm (6)/second
Max. print width	104 mm (4.09”)
Max. print length	25,400 mm (1,000”)	11,430 mm (450”)	2,540 mm (100”)
Enclosure	Die-cast print mechanism and base with bi-fold metal cover with large clear media view window
Physical dimension	276 mm (W) x 326 mm (H) x 502 mm (D) 10.87” (W) x 12.83” (H) x 19.76” (D)
Weight	15.35 kg (33.84 lbs)
Label roll capacity	203.2 mm (8”) OD
Internal rewiner (full roll)	NA
Ribbon	600 m long, max. OD 90 mm, 1” core (ink coated outside or inside)
Ribbon width	25.4 mm ~ 114.3 mm (1” ~ 4.5”)
Processor	32-bit RISC CPU
Memory	• 128 MB Flash memory • 128 MB SDRAM • microSD Flash memory card reader for Flash memory expansion, up to 32 GB
Interface	• RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host * 2, for scanner or PC keyboard • GPIO + Centronics (factory option) • Bluetooth (factory option) • Slot-in 802.11 a/b/g/n wireless (dealer option)
Power	Internal switching power supply • Input: AC 100-240V, 4-2A, 50-60Hz • Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W
LCD	TFT color display, 320 x 240 pixels
Operation switch, button, LED	1 power switch, 6 operation buttons (2 function keys and navigation buttons) & 1 LED with 3 colors (red, green, amber)
Sensors	• Gap transmissive sensor (position adjustable) • Black mark reflective sensor (position adjustable) • Head open sensor • Ribbon encoder sensor • Ribbon end sensor
Real time clock	Standard
Internal fonts	8 alpha-numeric bitmap fonts One Monotype Imaging CG Triumvirate Bold Condensed scalable font
Bar code	• 1D bar code Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS • 2D bar code TLC39, CODABLOCK F mode, Maxicode, QR code, Aztec, PDF-417, Micro PDF 417, GS1 DataMatrix, GS1 DataBar (RSS barcode)
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZ(Compatible to EPL, ZPL, ZPL II)
Media type	Continuous, die-cut, black mark, fan-fold, notch (outside wound)
Media width	20 ~ 114 mm (0.79″ ~ 4.5″)
Media thickness	0.06 ~ 0.28 mm (2.36 ~ 28 mil)
Media core diameter	38.1 ~ 76.2 mm (1.5” ~ 3”)
Label length	5 ~ 25,400 mm (0.20” ~ 1,000”)	5 ~ 11,430 mm (0.20” ~ 450”)	5 ~ 2,540 mm (0.20” ~ 100”)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation	FCC Class A, CE Class A, RCM Class A, UL, cUL, TÜV/safety, CCC, KC, BIS, ENERGY STAR
Environmental concern	Comply with RoHS, WEEE
Accessories	• Quick start guide • USB cable • Power cord
Limited warranty	• Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first
Factory options	• GPIO + Parallel interface • Internal Bluetooth module
Dealer options	• Regular cutter (full cut guillotine cutter) • 802.11 a/b/g/n wireless module kit (slot-in)
User options	• KP-200 Plus keyboard display unit • KU-007 Plus programmable smart keyboard
