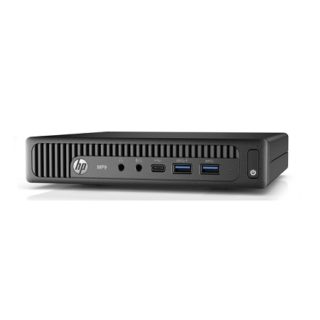

Manage your business from the store floor to the back office and all points in between with the HP MP9 Retail System, a super-compact, flexible powerhouse platform that is deployable wherever your retail demands.
Designed for everything you demand
Get the performance you need with your choice of familiar Windows operating systems, 6th generation Intel processors1, Intel HD 530 Graphics, and a range of storage options.
One-for-all, everywhere
Standardize your business on a high-performance platform packed into HPs smallest full-powered retail design. A range of ports and optional mounting solutions enable accessory expansion and positioning virtually anywhere.
Maximum uptime
Focus on your business with software and hardware features that simplify serviceability. Remotely manage your systems from one console with Intel® vPro™ AMT2 (select processors). Get easy access to internal components with a single thumb screw.
Ready for the wear and tear
Confidently deploy a solution that keeps its cool with unique temperature control technology and is designed to pass HP’s Total Test Process3 and MIL-STD 810G.4 It’s also backed by a three-year limited warranty and optional HP Care Pack.
Key Features
- Meet and exceed your business needs with 6th generation Intel Core vPro processors1,2 with the Intel Q170 Chipset, integrated Intel HD 530 Graphics, and up to 32 GB DDR4 memory.6 Then select your M.2 PCIe SSD or SATA HD storage—up to 2 TB.
- Go with the Windows or FreeDOS operating system you know and trust.
- Add a display—or two or three—a keyboard, mouse, cash drawer, barcode scanner, printer, and more8 with two DisplayPort connections, six USB 3.0 ports, one USB Type-C, and audio inputs. Get network connectivity from an RJ-45.
- Build a perfectly efficient point of sale, kiosk, digital signage or back office solution with a selection of mounting and security accessories.
- Help protect your data and hardware with HP BIOSphere with Sure Start, the industry’s first self-healing BIOS, and options8 that secure your device to a fixed location.
| Operating System choices |
Windows 10 IoT Enterprise for Retail (64-bit), Windows 10 Pro (64-bit), Windows Embedded 8.1 Industry Pro Retail (64-bit), Windows 8.1 Pro (64-bit), Windows Embedded Standard 7 (64-bit), Windows 7 Pro (32 & 64-bit), Windows Embedded POS Ready 7 (32 & 64-bit), FreeDOS |
| Front Side Features |
Headphone Connector
Microphone or Headphone Connector
(software selectable, default mode is microphone)
USB 3.0,USB 3.0 (charging),USB 3.0 Type-C
HDD indicator
Dual-State Power Button |
| Back Side Features |
External antenna connector (antenna optional)
Thumbscrew ,Padlock loop,HP Keyed Cable Lock
External antenna connector (antenna optional)
Antenna cover
DisplayPort monitor connector,VGA monitor connector
DisplayPort or optional HDMI or serial
2 USB 3.0 ports (blue)
2 USB 3.0 ports (blue) allows for wake from S4/S5 withkeyboard/mouse when connected and enabled in BIOS
RJ-45 network connector
Power connector |
- UEFI BIOS developed and engineered by HP for better security, manageability and software image stability
- Intel Q170 chipset with Intel 6th generation Core™ processors
- Intel vPro Technology available with select processors
- Integrated Intel HD Graphics
- Integrated Intel i219LM Gigabit Network Connection
- Optional wireless connectivity: M.2 Wireless LAN with Bluetooth
- High performance integrated stereo speakers
- DTS Studio Sound
- Up to 32 GB of DDR4 SDRAM, dual channel memory support, two SODIMM slots
- Support for up to two storage drives, one 2.5” drive bay, one M.2 slot for SSDs (SATA, PCIe, or NVMe)
- Up to 2TB SATA Hard Drive, and up to 256GB M.2 Solid State Drive
- Six USB 3.0 ports, one USB Type C,one DisplayPort, one VGA port plus optional port: Serial, HDMI or DisplayPort
- ENERGY STAR certified models available. EPEAT® registered where applicable. EPEAT registration varies by country.
CC, CECP & SEPA Certified
- Low halogen,Arsenic free
- Protected by HP Services, including warranties up to 3/3/3 (terms and conditions vary by country; certain restrictions and exclusions apply)
- Long purchase lifecycle and image stability
