MT90 Orca (WiFi only)

Drop us a line

From the moment you take it out of the box, the mt90 orca is easy to use

Current models released:

MT9052-2WO – without cradle

MT9052-2WO-C – with cradle

Features

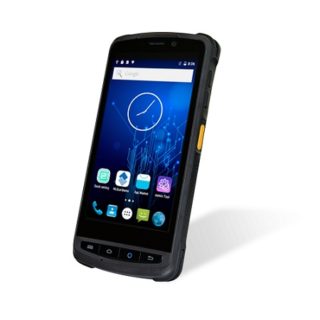

Full touchscreen mobile computer : The MT90 Orca (WiFi only) is an Android mobile computer that packs all of the latest hardware in a modern and user-friendly design. It is a light and durable device with a 5” capacitive touch screen. Equipped with a familiar user interface and the exterior of a consumer phone, the MT90 Orca (WiFi only) is easy to set up and use right out of the box.
Snappy 1D and 2D barcode scanning : Developed for quick and efficient barcode scanning, the MT90 Orca (WiFi only) ensures maximum productivity. Its scan engine is built in at the top of the device and can be triggered with a virtual button on the screen or a physical button on the side of the device for easy point-and-shoot scanning.
Reliable all day use with a replaceable battery : The MT90 Orca (WiFi only) has a 3.8V 4500 mAh battery that allows you to use the device all day without problem. Additionally, the battery is replaceable, allowing you to use a spare battery if needed.
Business-class durability : The MT90 is built to withstand dusty environments and inevitable bumps and drops. It has a rating of IP65 and has been drop tested up to 1.5m, ensuring longer and more reliable use.
Buckets: Newland’s MDM software : Buckets allows you to monitor and manage all devices in the field from one central administrated location. This MDM software enables you to distribute your APK’s, change OS version or settings and many other functions. Buckets MDM software is pre-installed on the MT90 Orca (WiFi only) and includes up to 7 years license-free use.
Accessories that match your operations : A wide range of accessories for the MT90 Orca (WiFi only) are included in the package, namely: single slot charging & communication (USB) cradle, rubber boot, hand strap and wrist lanyard. Pistol grip, holster and POE/ Ethernet cradle are optional.

Accessories

MT90 Orca charging cradle
MT90 Orca pistol grip
MC105 Metal clip for holster
MS105 Mounting strap for holster
NS105 Neck strap for holster
PT105 Protection tab for holster
RC105 Rotating clip for holster
BT105 Belt
HS106 Holster for pistol grip
HS115 Holster
HS190 Holster
UR90 UHF pistol grip
EX90 Long range pistol grip
CD90-4B 4 slot battery charger
CD90-3C 3 slot charging cradle

Specifications

SOC	RK3368, Cortex-A53 1.5 GHz , PowerVR G6110 GPU
Operating System	Android 7.1
Memory	2GB DDR3, 8GB eMMC
Dimensions	252 × 184 × 33mm
Material	PC + ABS plastic
Weight	615 grams, main body only, without power adapter and metal bracket
Display	10.1” WXGA, 1280*800 TFT LCD display/ 10 points Capacitive Touch
VESA mount holes	Metal fitting mounting screw holes: 75*75 mm
Clock Battery	Lithium-ion non-rechargeable coin battery for RTC
DC – input	AC 100-240V, 50-60Hz, 2A Max, DC12V±5%
Power consumption	1KHz audio playback etc. about 18W maximum, OFF: 0W
LED Indicator	1x LED / Power Supply ON: red, then turns green once kernel boot up Power Supply OFF: LED off
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 55°C (14°F to 131°F)
Humidity	20% to 65% (40°C)
Sealing	IP54(front panel)
1D Barcodes	Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, GS1 Composite Code, Matrix 2 of 5, Code 11, Industrial 25, Standard 25, Plessey, MSI-Plessey, etc.
2D Barcodes	PDF417, QR Code, Data Matrix, Chinese Sensible Code, Aztec Code, Maxicode, MicroPDF417, etc.
WiFi	IEEE 802.11 a/b/g/n/ac
Bluetooth	BT 4.1
LAN	RJ45 Ethernet, 10/100/1000 BaseT / POE (Power Over Ethernet)
Camera	Front: 5.0 MP camera
Audio	1x 3.5mm Headset + MIC jack, 2x Integrated speakers 8Ω / 1.3W
Sensor	G Sensor
Other H / W	VESA mount: Metal-fitting mounting screw holes
Functional keys	(Vol+ / Vol-) / (Up / Down) / Back / Power switch
Optional Module	NFC reader / MSR reader (available in Q2/2019)
USB Port	1x USB 2.0 host, type A port, 1x Micro USB 2.0 port
SD Card Slot	SD Card (SDHC class 10 compatible) slot with cover
GPIO Port	1x GPIO port
Expansion Slot	2x POGO-PIN, USB 2.0 / Supports up to two modules working concurrently
DC-in	4mm DC-In jack, 12V / 2A
Video	MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio	MP2, WMA, WAV, AAC, OGG, ASF
Picture	JPG, BMP, GIF
Certificates	CE, FCC, RoHS
Default Accessory	Multi -pin, multi-plug AC/DC adapter with power cord VESA 75 Wall Mount
Packaging	1PCS packaging box dimensions: 29120484mm 10PCS packaging box dimensions: 437306434mm
