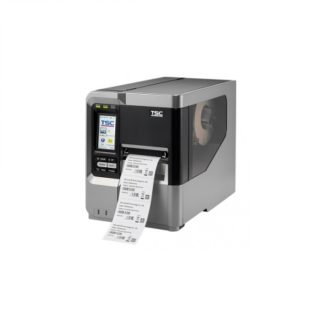

TSC MX240 Series

Drop us a line

With the MX240 Series TSC offers you faster label printing than ever before. With up to 356 mm per second you reliably print labels up to 114 mm wide. The robust thermal transfer printers are therefore your first choice in operating environments such as incoming or outgoing goods, as well as in assembly environments for parts marking. The molded aluminum housing gives it the robustness it needs to withstand high wear and tear. For applications requiring particularly small or very detailed labels, TSC also offers versions with 300 and 600 dpi (12 and 24 dots/mm, respectively).

The 4.3″ color touch panel, in combination with the 6-key menu and a variety of media sensors ensure for simple handling. The TSPL-EZ Firmware allows for Plug ’n’ Play, so that you may begin immediately. Using the standard integrated interfaces (RS232, USB, parallel, Ethernet) integration is a breeze. For wireless connections there are optional expansion modules available for Bluetooth and 802.11 b/g/n. You additionally realize efficient stand-alone applications with the MX240 Series, thanks to the integrated USB host.

Key Features

Thermal transfer label printing for high print volumes
Max. print speed of 356 mm/sec. at 203 dpi
Color touch panel for easy handling
Instant start-up, thanks to Plug ’n’ Play
Numerous interfaces standard, Bluetooth and Wi-Fi optional

Specifications

Printer Model	MX240	MX340	MX640
Resolution	8 dots/mm (203 DPI)	12 dots/mm (300 DPI)	24 dots/mm (600 DPI)
Printing method	Thermal Transfer & Direct Thermal
Max. print speed	356 mm (14”)/second	305 mm (12”)/second	152 mm (6”)/second
Max. print width	104 mm (4.09”)
Max. print length	25,400 mm (1,000”)	11,430 mm (450”)	2,540 mm (100”)
Enclosure	Die-cast based print mechanism and frame/Aluminum cover with large clear media view window
Physical dimension	300 mm (W) x 393 mm (H) x 510 mm (D) 11.81“ (W) x 15.47“ (H) x 20.08“ (D)
Weight	18 kg (39.68 lbs)
Label roll capacity	203.2 mm (8”) OD
Ribbon	600 meter long, max. OD 90 mm,1“ core (ink coated outside/inside)
Ribbon width	40 ~ 115 mm
Processor	32-bit RISC CPU
Memory	• 128 MB Flash memory • 256 MB SDRAM • SD Flash memory card reader for Flash memory expansion, up to 32 GB
Interface	• RS-232 • Centronics • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host * 2 (front side) * 2 (rear side, factory option), for scanner or PC keyboard • GPIO (dealer option) • Bluetooth (user option) • External 802.11 b/g/n wireless (user option)
Power	Internal universal switching power supply • Input: AC 100-240V, 3.0A, 50-60Hz • Output: DC 24V, 8.33A, 200W
LCD	16 bits Color, 480 x 272 pixel, with back light, Resistive Touch Screen
Operation switch, button	1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select)
Sensors	• Gap transmissive sensor (position adjustable) • Black mark reflective sensor (position adjustable) • Head open sensor • Ribbon end sensor • Ribbon encode sensor
Real time clock	Standard
Internal fonts	• 8 alpha-numeric bitmap fonts • Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	• 1D bar code Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11, China Post • 2D bar code PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Media type	Continuous, die-cut, black mark, fan-fold, notch (outside wound)
Media width	20 ~ 114 mm (0.78“ ~ 4.49“)
Media thickness	0.076 ~ 0.305 mm (2.99 ~ 12.01 mil)
Media core diameter	76.2 mm (3”)
Label length	3 ~ 25,400 mm (0.1“ ~ 1,000“)	3 ~ 11,430 mm (0.1“ ~ 450“)	3 ~ 2,540 mm (0.1“ ~ 100“)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation	FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC
Environmental concern	Comply with RoHS, WEEE
Accessories	• Windows labeling software CD disk • Quick start guide • USB cable • Power cord
Limited warranty	• Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first
Factory options	• Internal rewinding kit (include internal rewind & label redirect front panel) • USB host (rear side), for scanner or PC keyboard
Dealer options	• Peel-off kit (include internal rewind & peel off module) • Regular cutter (full cut guillotine cutter) • Heavy duty cutter (full cut rotary cutter) • GPIO interface
User options	• Bluetooth module (serial interface) • 802.11 b/g/n wireless module (serial interface) • KP-200 Plus keyboard display unit • KU-007 Plus programmable smart keyboard
