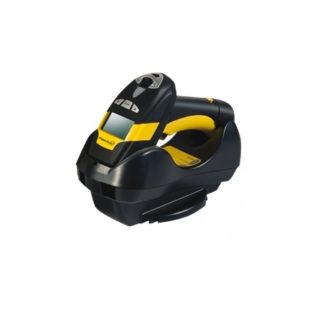

The PowerScan8300 series is Datalogic’s premium range of robust data capture devices. The PBT8300’s sturdy housing makes it an all-round laser scanner for daily use and continuous operation in industry, stocktaking and retail. Thanks to the standard powerful and reliable Bluetooth 2.0, you can use it very flexibly. Outdoors, its transmission range reaches 90 m to any Bluetooth receiver or the host computer, and with more than 50,000 scans per battery charge and a charging period of only four hours, this scanner fits any work area.

With its crosshairs and four additional aiming lights, it greatly facilitates precise barcode scanning. Working under loud conditions also becomes easier with this scanner: an acoustic signal and Datalogic’s patented Green Spot confirm good reads. Its tough housing (protection class IP65 without display / IP64 with display) is designed to withstand heavy impacts, such as two-metre drops, and a large range of operating temperatures; all without impairing reading performance. In addition to the basic version, you can choose models with an integrated display and three function keys or 16-key keyboard.

Features

  • Extremely robust industrial laser scanner for mobile use
  • Reliable Bluetooth wireless connection up to 90 m
  • Powerful battery for more than 50,000 scans per charge
  • Aiming function for accurate scanning and patented Green Spot good-read feedback
  • Practical versions with additional display and 16-key keypad

    Bluetooth Wireless Technology Piconet: Max. Readers per Radio Receiver: 4
    Profiles: HID (Human Interface Device); SPP (Serial Port Profile)
    Protocol: Bluetooth 2.0 Certified Class 1 or Class 2 (configurable); Radio Frequency: 2.40 to 2.48 GHz;
    Radio Range (Open Air): Class 1: Exceeds 90 m / 295 ft radio range; Class 2: Exceeds 40 m / 131 ft radio range; Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results.
    Security: Data Encryption; Scanner Authentication
    1D / Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
    Stacked Codes Code 16K; Code 49; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
    Battery Battery Type: Lithium-Ion 2150 mAh
    Charge Time External Power: 4 Hours; Host Power: 10 hours
    Reads Per Charge 50,000 +
    Cradle Indicator LEDs Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)
    Current Operating (Typical): 1 A @ 10 VDC, 330 mA @ 30 VDC, POT: 500 mA
    Input Voltage 10 – 30 VDC, POT: 5 VDC +/- 10%
    Ambient Light Immune to light exposure in offices/facilities and direct exposure to sunlight
    Drop Resistance Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface.
    ESD Protection (Air Discharge) 20 kV
    Humidity (Non-condensing) 90%
    Particulate And Water Sealing PBT8300: IP65; PBT8300-D, PBT8300-DK: IP64
    Temperature Operating: -20 to 50 °C / -4 to 122 °F
    Storage/Transport: -40 to 70 °C / -40 to 158 °F
    Interfaces RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
    Dimensions Cradle: 24.0 x 10.8 x 9.5 cm / 9.5 x 4.3 x 3.7 in
    PBT8300: 20.7 x 11.4 x 6.9 cm / 8.1 x 4.5 x 2.7 in
    PBT8300-D, PBT8300-DK: 21.0 x 11.4 x 6.9 cm / 8.3 x 4.5 x 2.7 in
    Weight Cradle: 380.0 g / 13.4 oz; PBT8300: 380.0 g / 13.4 oz
    PBT8300-D: 410.0 g / 14.4 oz;
    PBT8300-DK: 420.0 g / 14.8 oz
    Display Display Type: PBT8300-D, PBT8300-DK: Graphic with backlight
    Font Dimensions: PBT8300-D only: User selectable (4 lines x 16 columns default)
    PBT8300-D Only: 3-Key Keypad; PBT8300-DK: 16-Key Keypad
    Light Source 630 – 680 nm VLD; Aiming: 630 – 680 nm VLD, Activated by ‘Double-Click’ Trigger
    Print Contrast Ratio (Minimum) 15%
    Read Rate 35 +/- 5 scans/sec
    Reading Angle Pitch: 5 to 55° / -5 to -55; Roll (Tilt): +/- 20°; Skew (Yaw): +/- 60°
    Reading Indicators Beeper; Datalogic Three Green Lights (3GL™) Good Read Feedback; Datalogic ‘Green Spot’ on the Code,Dual Good Read LEDs; Good Transmission
    Resolution (Maximum) PBT83X0: 0.076 mm / 3 mils; PBT83X0 Auto Range: 0.190 mm / 7.5 mils
    Depth Of Field Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
    PBT8300
    5 mils: 2.1 to 13.3 cm / 0.8 to 5.2 in
    7.5 mils: 3.5 to 24.2 cm / 1.4 to 9.5 in
    10 mils: 2.9 to 42.8 cm / 1.1 to 16.8 in
    13 mils: 2.3 to 55.1 cm / 0.9 to 21.7 in
    20 mils: 6.3 to 78.5 cm / 2.5 to 30.9 in
    40 mils: 2.5 to 97.8 cm / 1.0 to 38.5 in
    PBT8300 AR
    7.5 mils: 18.0 to 50.0 cm / 7.0 to 19.7 in
    10 mils: 18.0 to 85.0 cm / 7.0 to 33.5 in
    15 mils: 15.0 to 165.0 cm / 5.9 to 65.0 in
    20 mils: 12.0 to 210.0 cm / 4.7 to 82.7 in
    40 mils: 18.0 to 375.0 cm / 7.0 to 147.6 in
    55 mils: 25.0 to 485.0 cm / 9.8 to 15.9 ft
    Reflective -100 mils: 1.5 to 12.5 m / 4.9 to 41.0 ft
    Agency Approvals The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications.
    Environmental Compliance Complies to China RoHS, Complies to EU RoHS
    Laser Classification Caution Laser Radiation – Do not stare into beam; CDRH Class II; EN 60825-1 Class 2
    Datalogic Aladdin Datalogic Aladdin configuration program is available for download at no charge.
    Warranty 3-Year Factory Warranty
