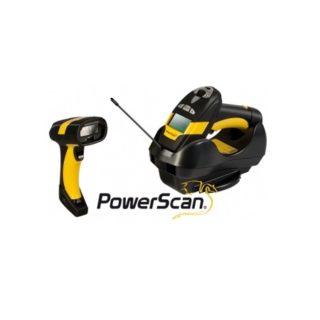

The mobile scanners of the PowerScan8300 family offer the same professional and robust characteristics as the wired versions. The extremely durable housing is made of impact-resistant ABS plastic and is designed for constant use in industry and retail. As a battery-powered model it still offers particularly long operating times. It can perform over 60,000 scans per charge and has a short charging period of only two hours, making it suitable for all applications in production and logistics. In order to make barcode scanning possible even under very noisy conditions, the scanner is equipped with a clearly audible beeper with adjustable volume, extra-bright LEDs and a targeting spot for easy scans.
It is a high-resolution laser scanner with a large read distance and a fast microprocessor for all common one-dimensional barcodes. The scanners of the PowerScan M83xx series submit all data in the licence-free 433MHz frequency range, with bidirectional communication between scanner and host.
A maximum of 2,000 devices can be used on the same frequency concurrently – a number that is usually unattainable. In the network, every base station manages a maximum of 32 devices concurrently. As a result, the Datalogic wireless system is a powerful and flexible solution for simple applications as well as for complex projects.
Its robust mechanics were developed and tested in such a way that the scanner can even resist extreme impacts (such as ten drops from 2 m height in tests), as well as constant normal impacts (1,000 drops from 1 m height) without impairing scanning performance.
In order to increase mobile scanning efficiency even further, there are versions available with an integrated 32 x 98 pixel display and a keypad with three keys, which can be used for active host communication and for receiving additional information (such as human-readable article descriptions), or directly display the scanned barcodes.
Features
- Sturdy barcode scanner for industrial applications
- Portable wireless version of the professional scanner
- Excellent ergonomics and flexibility: up to 50 m operating range
- All interfaces in one device: USB, RS232, and keyboard wedge
- Patented Green Spot indication – scanning made easy
| Datalogic Star Cordless System |
Point-to-Point Configuration;Multi-Point Configuration
Effective Radiated Power: 433.92 MHz: <10 mW; 910 MHz: <1 mW
Max. Readers in Same Area: 2000 Max. Readers per Radio Receiver: 32. Radio Frequency: 433.92 MHz;
910 MHz Radio Range (Open Air): 433.92 MHz: Up to 50 m / 164 ft 910 MHz: Up to 30 m / 98 ft Seamless Roaming; Two Way Communications |
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Stacked Codes |
Code 16K; Code 49; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional |
| Battery |
Battery Type: Lithium-Ion 2150 mAh |
| Charge Time |
External Power: 4 Hours; Host Power: 10 hours |
| Reads Per Charge |
60,000 + |
| Cradle Indicator LEDs |
Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow) |
| Current |
Operating (Typical): 1 A @ 10 VDC, 330 mA @ 30 VDC, POT: 500 mA |
| Input Voltage |
10 – 30 VDC, POT: 5 VDC +/- 10% |
| Ambient Light |
Immune to light exposure in offices/facilities and direct exposure to sunlight |
| Drop Resistance |
Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
20 kV |
| Humidity (Non-condensing) |
90% |
| Particulate And Water Sealing |
PM8300: IP65; PM8300-D, PM8300-DK: IP64 |
| Temperature |
Operating: -20 to 50 °C / -4 to 122 °F
Storage/Transport: -20 to 70 °C / -4 to 158 °F |
| Interfaces |
Keyboard Wedge; RS-232; RS-485 BC8060 Only; USB; Wand |
| Colors Available |
Yellow/Black |
| Dimensions |
Cradle: 24.0 x 10.8 x 9.5 cm / 9.5 x 4.3 x 3.7 in
PM8300: 20.7 x 11.4 x 6.9 cm / 8.1 x 4.5 x 2.7 in
PM8300-D, PM8300-DK: 21.0 x 11.4 x 6.9 cm / 8.3 x 4.5 x 2.7 in |
| Weight |
Cradle: 380.0 g / 13.4 oz;
Reader: 395.0 g / 13.9 oz |
| Display |
PM8300-D, PM8300-DK: Display Type: Graphic with backlight; Font Dimensions: User selectable (4 lines x 16 columns default);Screen Dimensions: 32 x 96 pixels |
|
| PM8300-D Only: 3-Key Keypad;
PM8300-DK Only: 16-Key Keypad |
| Light Source |
630 – 680 nm VLD; Aiming: 630 – 680 nm VLD, Activated by ‘Double-Click’ Trigger |
| Print Contrast Ratio (Minimum) |
15% |
| Read Rate |
35 +/- 5 scans/sec |
| Reading Angle |
Pitch: 5 to 55° / -5 to -55; Roll (Tilt): +/- 20°; Skew (Yaw): +/- 60° |
| Reading Indicators |
Beeper; Datalogic Three Green Lights (3GL™) Good Read Feedback; Datalogic ‘Green Spot’ on the Code,Dual Good Read LEDs; Good Transmission |
| Resolution (Maximum) |
PM83X0: 0.076 mm / 3 mils; PM83X0 Auto Range: 0.190 mm / 7.5 mils |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
PM8300
5 mils: 2.1 to 13.3 cm / 0.8 to 5.2 in
7.5 mils: 3.5 to 24.2 cm / 1.4 to 9.5 in
10 mils: 2.9 to 42.8 cm / 1.1 to 16.8 in
13 mils: 2.3 to 55.1 cm / 0.9 to 21.7 in
20 mils: 6.3 to 78.5 cm / 2.5 to 30.9 in
40 mils: 2.5 to 97.8 cm / 1.0 to 38.5 in
PM8300 AR
7.5 mils: 7.0 to 46.5 cm / 2.7 to 18.3 in
10 mils: 10.8 to 99.9 cm / 4.2 to 39.3 in
13 mils: 12.7 to 147.3 cm / 5.0 to 58.0 in
20 mils: 7.0 to 215.9 cm / 2.7 to 85.0 in
40 mils: 16.0 to 340.0 cm / 6.3 to 133.8 in
55 mils: 0.2 to 4.1 m / 0.7 to 13.5 ft
Reflective – 100 mils: 1.5 to 12.5 m / 4.9 to 41.0 ft |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Laser Classification |
Caution Laser Radiation – Do not stare into beam; CDRH Class II; EN 60825-1 Class 2 |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| Warranty |
3-Year Factory Warranty |
