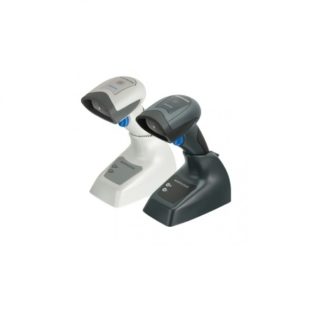

Even today many sectors still work with 1D barcodes. Datalogic presents a further development of the conventional laser scanner with the linear imager QuickScan QBT2131. It quickly captures all common 1D barcodes and is particularly reliable because it does not feature any moving parts.
The QBT2131 offers both a wider scan line as well as a broader scanning angle. This simplifies handling and scanning of longer barcodes, because the scanning distance does not increase. With Bluetooth transmission users freely move about within a range of up to 25 m from the base station. In case the scanner loses its connection to the station it simply saves approximately 500 barcodes beyond its range. Thanks to Bluetooth HID the scanner also supports connections with devices using Android and iOS operating systems. The 1,400 mAh battery may be directly recharged in the scanner via a micro-USB cable, thus ensuring for uninterrupted further usage. For integration you have KBW/IBM/RS-232 and USB interfaces available.
Features
- Wireless handheld scanner with extra wide scan line
- Battery (1,400mAh) directly rechargeable via micro-USB
- Bluetooth range up to 25 m
- Internal memory for 500 barcodes
- Compatible with Android and iOS devices
| Bluetooth Wireless Technology |
Piconet: Max. Readers per Radio Receiver Using Commercial Dongle: 7; Using Cradle: 1 |
| Profiles |
HID (Human Interface Device)
SPP (Serial Port Profile) |
| Protocol |
Bluetooth 3.0 Certified Class 2 |
| Radio Frequency |
2.4 GHz |
| Radio Range (Open Air) |
25.0 m / 82.0 ft
Range distances are measured using the basestation. Range with connection to other Bluetooth peripherals may show different results. |
| Security |
Data Encryption; Scanner Authentication |
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; UPC A/E Composites. |
| Battery |
Battery Type: Lithium-Ion 1400 mAh
Charge Time: External Power: 4 hrs @ 12 VDC;
Reads per Charge: 30,000 + |
| Input Voltage |
4.75 – 14 VDC |
| Ambient Light |
0 – 120,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
90% |
| Particulate And Water Sealing |
IP42 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
Keyboard Wedge / OEM (IBM) USB / RS-232 / USB |
| Colors Available |
Black, White |
| Dimensions |
16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in |
| Weight |
Reader: 190 g / 6.7 oz
Base/Charger: 221 g / 7.8 oz |
| Field Of View |
56° +/- 2° |
| Light Source |
Red LED 610 – 650 nm |
| Print Contrast Ratio (Minimum) |
25% |
| Read Rate |
400 reads / sec |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume)
Datalogic ‘Green Spot’ Good Read Feedback
Good Read LED |
| Resolution (Maximum) |
0.102 mm / 4 mils (Linear Codes) |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
4 mils:3.0 to 11.0 cm / 1.2 to 4.3 in
5 mils:2.0 to 15.0 cm / 0.8 to 5.9 in
7.5 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in
10 mils:2.0 to 36.0 cm / 0.8 to 14.2 in
13 mils:1.0 to 45.0 cm / 0.4 to 17.7 in
20 mils:4.0 to 70.0 cm / 1.5 to 27.5 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS,Complies to EU RoHS |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
3-Year Factory Warranty |
