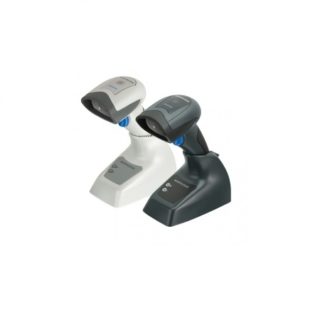

The Datalogic QuickScan QM2131 is designed for applications which exclusively work with 1D barcodes, yet for users who wish to utilize the advantages of imaging technology. A key factor in achieving this is its increased durability, thanks to no moving components, as well as the possibility of capturing barcodes from a smartphone display.
The STAR cordless system 2.0 wireless technology allows for scanning without interference of the radio network – through Wi-Fi or obstructions such as walls. The effective range is up to 25 m. Thanks to its multi-interface you connect the scanner via USB, KBW and RS232. This keeps you flexible and makes any future change of the connection type simple. Replace the 1,400 mAh rechargeable battery without tools and charge it without the charging station simply by plugging it in. Per battery charge you perform up to 30,000 scans. The QM2131 works at a speed of up to 400 scans/second. The good read confirmation occurs via an acoustic signal, the Datalogic Green Spot or a notification LED.
Features
- Wireless imager for particularly wide 1D barcodes
- Up to 30,000 scans per battery charge
- STAR 2.0 cordless system with a transmission range of up to 25 m
- Batch mode in case of transmission interruptions to the base station
- Patented Datalogic Green Spot good scan confirmation
| Datalogic Star 2.0 Cordless System |
Effective Radiated Power: 433.92 MHz;
Point-to-Point Configuration |
| Radio Frequency |
433 MHz |
| Radio Range (Open Air) |
25.0 m / 82.0 ft |
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; UPC A/E Composites. |
| Battery |
Battery Type: Lithium-Ion 1400 mAh
Charge Time: External Power: 4 hrs @ 12 VDC;
Reads per Charge: 30,000 + |
| Input Voltage |
4.75 – 14 VDC |
| Ambient Light |
0 – 120,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
90% |
| Particulate And Water Sealing |
IP42 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
Keyboard Wedge / OEM (IBM) USB / RS-232 / USB |
| Colors Available |
Black, White |
| Dimensions |
16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in |
| Weight |
Reader: 190 g / 6.7 oz
Base/Charger: 215 g / 7.6 oz |
| Field Of View |
56° +/- 2° |
| Light Source |
Red LED 610 – 650 nm |
| Print Contrast Ratio (Minimum) |
25% |
| Read Rate |
400 reads / sec |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 70° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume)
Datalogic ‘Green Spot’ Good Read Feedback
Good Read LED |
| Resolution (Maximum) |
0.102 mm / 4 mils (Linear Codes) |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
4 mils:3.0 to 11.0 cm / 1.2 to 4.3 in
5 mils:2.0 to 15.0 cm / 0.8 to 5.9 in
7.5 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in
10 mils:2.0 to 36.0 cm / 0.8 to 14.2 in
13 mils:1.0 to 45.0 cm / 0.4 to 17.7 in
20 mils:4.0 to 70.0 cm / 1.5 to 27.5 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS,Complies to EU RoHS |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
3-Year Factory Warranty |
