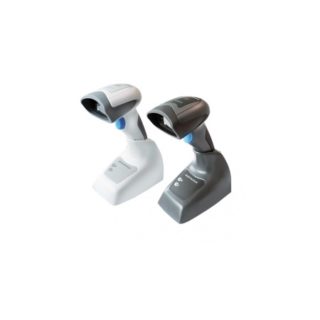

Simply capture barcodes mobilely – a matter of course with Datalogic’s QuickScan QBT2400. The cordless area imager features modern Bluetooth wireless technology, and transfers the collected data quickly and reliably. It scores well with its excellent price-performance ratio and aggressive reading performance. Thus, the QuickScan provides a high pace in the capture of printed and digital 1D and 2D barcodes.
The large Bluetooth wireless range of up to 25 m around the base station increases user efficiency. No cables disturb at work, and the movements are natural and intuitive. The freedom of movement has a positive effect both on the ergonomics and user performance. The QBT2400 sends the data either via the base station to the host or any Bluetooth device within range. Use the QuickScan QBT2400 easily with almost any tablet or mobile computer – via Bluetooth HID profile easily connect devices based either on Android or iOS.
The strong performance of the lithium ion battery ensures for long operating times. The battery – the most in demand part in everyday life – can be easily replaced on-site by the user. This saves time and maximizes efficiency. If a defect occurs, only the affected part must be replaced, which positively reflects in operating costs. The integrated scanner stand features a micro USB port, as an alternative charging method, so that only cradle recharging is not necessary.
Datalogic’s patented Green Spot good scan confirmation ensures that the user receives clear feedback after every scan. The characteristic green good read dot lights up on the captured barcode after a successful scan. System errors and loss of time due to double scanning become a thing of the past. The targeting and lighting systems of the QuickScan QBT2400 are also user friendly and efficiency-oriented. The dark red lighting goes easy on users’ eyes. Two starkly contrasting blue triangles clearly define the target area, making working with lists more precise.
Features
- Cordless area imager with 25 m Bluetooth wireless range
- Fast capture of all printed and digital 1D and 2D barcodes
- Easy transfer to the base station or any Bluetooth device
- Compatible with iOS and Android mobile devices
- Easy battery replacement or charging via micro USB
| Bluetooth Wireless Technology |
Piconet: Max. Readers per Radio Receiver Using Commercial Dongle: 7; Using Cradle: 1 |
| Profiles |
HID (Human Interface Device)
SPP (Serial Port Profile) |
| Protocol |
Bluetooth 3.0 Certified Class 1 |
| Radio Frequency |
2.4 GHz |
| Radio Range (Open Air) |
25.0 m / 76.2 ft
Range distances are measured using the basestation. Range with connection to other Bluetooth peripherals may show different results. |
| Security |
Data Encryption; Scanner Authentication |
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| 2D Codes |
Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Battery |
Battery Type: Lithium-Ion 1400mAh |
| Charge Time |
External Power: < 3 hrs @ 12 VDC |
| Reads Per Charge |
Continuous Reading: 30,000 + |
| Input Voltage |
4.75 – 14 VDC |
| Ambient Light |
0 – 100,000 lux |
| Drop Resistance |
Withstands 50 drops from 1.5 m / 5.0 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
5-95% |
| Particulate And Water Sealing |
IP42 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
Keyboard Wedge / OEM (IBM) USB / RS-232 / USB |
| Colors Available |
Black, White |
| Dimensions |
16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in |
| Weight |
Reader: 200 g / 7.1 oz
Base/Charger: 230 g / 8.1 oz |
| Imager Sensor |
Wide VGA: 752 x 480 pixels |
| Light Source |
Aiming: 2 Blue LED’s;
Illumination: Red LED 610 – 650 nm |
| Motion Tolerance |
25 IPS |
| Print Contrast Ratio (Minimum) |
25% |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 60° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution (Maximum) |
0.102 mm / 4 mils (Linear Codes) |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
Code 39 5 mils:0.5 to 15.0 cm / 0.2 to 5.9 in
EAN/UPCA 13 mils:0.5 to 35.0 cm / 0.2 to 13.8 in
PDF417 6.6 mils:2.0 to 15.0 cm / 0.8 to 5.9 in
Data Matrix 10 mils:2.0 to 16.0 cm / 0.8 to 6.3 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
3-Year Factory Warranty |
