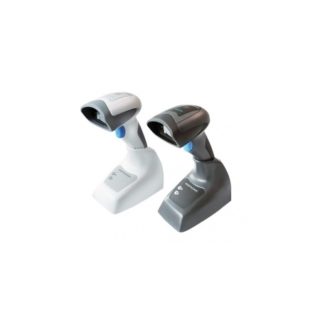

Users who need a high degree of flexibility and reliability when capturing barcodes need look no further than the wireless QuickScan QM2400 from Datalogic. The area imager quickly, securely and reliably captures both 1D barcodes as well as the more commonly used 2D barcodes. This applies to both printed barcodes as well as for digital codes on monitors and smartphone displays. Thus the QM2400 is also excellent for mobile marketing applications in retail. Besides using it at the POS, you may also utilize this mobile scanner optimally in incoming goods, for inventory management, in administration, for postal services and in banks.
The large radio range of up to 25 m from the base station increases user efficiency. Users have more freedom of movement and there are no cumbersome cables which could interfere. Particularly workers who do not have a fixed work area benefit tremendously. A particular advantage of Datalogic’s own developed narrow band communication version is that there is no interference with the Wi-Fi infrastructure.
The high performing lithium ion batteries ensure for long operating times. The battery – the part most in demand – may be easily exchanged on-site, saving users time and maximizing efficiency. In case of a defect only the affected part needs replacing, which positively reflects in operating costs. In the scanner stand there is an integrated micro USB connection, available to you as an alternative recharging method, making pure cradle charging unnecessary.
Datalogic’s patented Green Spot good scan confirmation ensures that the user receives clear feedback after every scan. The characteristic green good read dot lights up on the captured barcode after a successful scan. System errors and loss of time due to double scanning become a thing of the past. The targeting and lighting systems of the QuickScan QM2400 are also user friendly and efficiency-oriented. The dark red lighting goes easy on users’ eyes. Two starkly contrasting blue triangles clearly define the target area, making working with lists more precise.
Features
- Wireless area imager with Star 2.0 cordless system narrow band communication (433 MHz)
- High transmission security without interference from Wi-Fi
- Captures all 1D and 2D barcodes, even from smartphones
- Up to 25 m range for high operational flexibility
- Simple battery exchange or recharging via micro USB
| Datalogic Star 2.0 Cordless System |
Effective Radiated Power: 433.92 MHz;Point-to-Point Configuration |
| Radio Frequency |
433 MHz |
| Radio Range (Open Air) |
25.0 m / 76.2 ft |
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| 2D Codes |
Aztec Code; Aztec Mesas; Data Matrix; MaxiCode; QR Code, Micro QR Code; China Han Xin Code |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites |
| Battery |
Battery Type: Lithium-Ion 1400mAh |
| Charge Time |
External Power: < 3 hrs @ 12 VDC |
| Reads Per Charge |
Continuous Reading: 30,000 + |
| Input Voltage |
4.75 – 14 VDC |
| Ambient Light |
0 – 100,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.5 m / 4.9 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
5-95% |
| Particulate And Water Sealing |
IP42 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
Keyboard Wedge / OEM (IBM) USB / RS-232 / USB |
| Colors Available |
Black, White |
| Dimensions |
16.3 x 9.1 x 4.1 cm / 6.4 x 3.6 x 1.6 in |
| Weight |
Reader: 200 g / 7.1 oz
Base/Charger: 230 g / 8.1 oz |
| Imager Sensor |
Wide VGA: 752 x 480 pixels |
| Light Source |
Aiming: 2 Blue LED’s;
Illumination: Red LED 610 – 650 nm |
| Motion Tolerance |
25 IPS |
| Print Contrast Ratio (Minimum) |
25% |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 60° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution (Maximum) |
0.102 mm / 4 mils (Linear Codes) |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
Code 39 5 mils:0.5 to 15.0 cm / 0.2 to 5.9 in
EAN/UPCA 13 mils:0.5 to 35.0 cm / 0.2 to 13.8 in
PDF417 6.6 mils:2.0 to 15.0 cm / 0.8 to 5.9 in
Data Matrix 10 mils:2.0 to 16.0 cm / 0.8 to 6.3 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations. |
| Warranty |
3-Year Factory Warranty |
