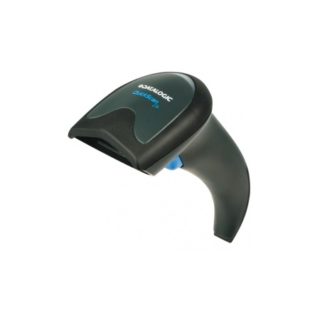

Based on the success of the existing QuickScan models, Datalogic has developed a special version for particularly wide barcodes. This 1D device is ideal for everyone who is looking for a handy, well-performing scanner with a small price tag. The linear imager reads all standard 1D codes and linear GS1 DataBar codes. Thanks to its widened, bright scan line it also scans wider than usual barcodes, such as those used in particular regions and by manufacturers of electronic parts.
In combination with the special folding stand, it is flexibly set-up in retail, banks or light industry in both handheld or presentation mode. Its patented Green Spot scan confirmation ensures for good ergonomic qualities, as do its light weight and compact housing with a protective non-slip rubber surface. This keeps the QuickScan fully operational even after repeated drops from a height of 1.5 m. Its IP42 certification guarantees protection against splash water and dust, and its three-year warranty secures your investment. For easy integration, choose between the USB and keyboard wedge/RS232 interfaces.
Features
- 1D linear imager with a particularly wide and bright scan line
- Practical handheld or presentation modes (stand optional)
- For all standard 1D codes and linear GS1 DataBar codes
- Protective rubber surface, IP42, 3-year warranty
- Simple set-up thanks to Aladdin configuration software
| 1D / Linear Codes |
Autodiscriminates all standard 1D codes including GS1 DataBar linear codes |
| Postal Codes |
Australian Post; British Post; Canadian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) |
| Stacked Codes |
EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectiona |
| Current |
Operating (Typical): <180 mA @ 5 VDC
Standby/Idle (Typical): <25 mA @ 5 VDC
Sleep Mode: USB Suspend (QW2120): <2 mA @ 5 VDC
Low Power Mode (QW2170): <6 mA @ 5 VDC |
| Input Voltage |
5 VDC +/- 0.5 V |
| Ambient Light |
120,000 lux |
| Drop Resistance |
Withstands repeated drops from 1.5 m / 5 ft onto a concrete surface. |
| ESD Protection (Air Discharge) |
16 kV |
| Humidity (Non-condensing) |
5-95% |
| Particulate And Water Sealing |
IP42 |
| Temperature |
Operating: 0 to 50 °C / 32 to 122 °F
Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| Interfaces |
QW2170-BK: RS-232 / Keyboard Wedge
QW2120-BK: USB |
| Colors Available |
Black |
| Dimensions |
17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in |
| Weight |
119.0 g / 4.2 oz |
| Light Source |
Red LED 610-650 nm |
| Print Contrast Ratio (Minimum) |
25% |
| Reading Angle |
Pitch: +/- 65°; Roll (Tilt): 45°; Skew (Yaw): +/-75° |
| Reading Indicators |
Beeper (Adjustable Tone and Volume); Datalogic ‘Green Spot’ Good Read Feedback; Good Read LED |
| Resolution (Maximum) |
0.102 mm / 4 mils (1D Codes) |
| Field of View |
56° +/- 2° |
| Depth Of Field |
Minimum distance determined by symbol length and scan angle.Printing resolution, contrast, and ambient light dependent.
5 mils : 2.5 to 15.0 cm / 1.0 to 6.0 in
7.5 mils : 0 to 24.0 cm / 0 to 9.4 in
10 mils: 0 to 35.0 cm / 0 to 13.8 in
13 mils: 0 to 40.0 cm / 0 to 15.7 in
20 mils: 0 to 60.0 cm / 0 to 23.6 in |
| Agency Approvals |
The product meets necessary safety and regulatory approvals for its intended use.The Quick Reference Guide for this product can be referred to for a complete list of certifications. |
| Environmental Compliance |
Complies to China RoHS, Complies to EU RoHS |
| Datalogic Aladdin |
Datalogic Aladdin configuration program is available for download at no charge. |
| OPOS / JavaPOS |
JavaPOS Utilities are available for download at no charge.
OPOS Utilities are available for download at no charge. |
| Remote Host Download |
Lowers service costs and improves operations.(-RM models only) |
| Warranty |
3-Year Factory Warranty |
