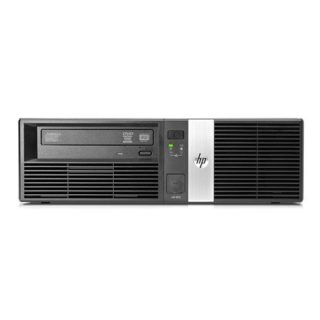

Get the flexibility and expandability to control everything from the store floor to the back office with the HP RP5 Retail System, Model 5810, an all-around high-performer that meets the rigors of retail environment so you can focus on making sales.
Powered for performance
Excel in even the most demanding environments with your choice of operating system, 4th generation Intel Core processors,1 and storage to help you take on every retail challenge. Get all the storage space you need with your choice of HDDs up to 2 TB, SSDs up to 256 GB and three drive bays for expanding as your business grows.
Customize your perfect fit
Tailor the system to your specific needs with legacy and evolving ports that support a wide range of retail peripherals, and add-ons that offer true flexibility.Future-proof your business with a broad selection of ports, including serial, parallel, and up to 14 USB. VGA and DisplayPort ports, with an optional second DisplayPort card, support up to three independent operator or customer-facing displays.
Management and security made easy
POS doesn’t need to be complicated. Enjoy simple, low-cost management with built-in features that help ensure the security of your customer data and terminals.Control more and spend less with Intel vPro AMT and client management software from HP and LANDesk.
Trust your hardware
In the demanding world of retail, you can’t afford to slow down. Retail-hardened durability and an oversized cooling system help ensure you don’t miss a beat.
Backed by the best
Get deployment flexibility with a five-year lifecycle and award-winning HP service and support. A three-year limited warranty comes standard, and additional coverage up to five years is available with optional HP Care Pack Services.
| Operating System choices |
Windows 10 Pro 64-bit
Windows 10 IoT Enterprise Pro Retail 64-bit
Windows 8.1 Pro 64-bit
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro)
Windows 7 Professional 32 (available through downgrade rights from Windows 10 Pro)
Windows Embedded POSReady 7 32-bit
Windows Embedded POSReady 7 64-bit |
| Processors |
Intel Core i7-4770S with Intel HD Graphics 4600 (3.1 GHz, 8 MB cache, 4 cores)
Intel Core i5-4570S with Intel HD Graphics 4600 (2.9 GHz, 6 MB cache, 4 cores)
Intel Core i3-4430 with Intel HD Graphics 4600 (3 GHz, 6 MB cache, 4 cores)
Intel Pentium G3420 with Intel HD Graphics (3.2 GHz, 3 MB cache, 2 cores)
Intel Celeron G1820 with Intel HD Graphics (2.7 GHz, 2 MB cache, 2 cores) |
| Chipset |
Intel Q87 Express |
| Form factor |
Small Form Factor |
| Maximum memory |
32 GB 1600 MHz DDR3 SDRAM |
| Memory Slots |
4 DIMM |
| Internal drive bays |
Two 3.5″ |
| External drive bays |
One 5.25″ |
| Internal drive |
500 GB up to 2 TB SATA (7200 rpm)
500 GB SATA SED
32 GB up to 256 GB SATA SSD
128 GB up to 256 GB SATA SE SSD |
| Optical drive |
SATA DVD-ROM |
| Graphics |
Intel HD Graphics
Intel HD Graphics 4400
Intel HD Graphics 4600
NVIDIA NVS 315 (1 GB)
NVIDIA NVS 510 (2 GB) |
| Ports |
Back 5 USB 2.0, 2 USB 3.0, 1 24V powered USB
2 powered serial (5V/12V), 1 PS/2 keyboard, 1 PS/2 mouse
1 VGA, 1 DisplayPort 1.2
1 audio in, 1 audio out
1 RJ-45, 1 RJ-12 (cash drawer) |
| Expansion slots |
1 half-height PCIe x16 (x16)
1 half-height PCIe x16 (x4)
2 full-height PCI or PCIe (x1) |
| Audio |
HD audio with Realtek ALC261 codec (all ports are stereo). Line out and line in rear ports (3.5 mm) and internal speaker |
| Network interface |
Integrated Intel I217LM GbE
Intel I210-T1 PCIe GbE (optional)
Intel 7260 802.11 a/b/g/n wireless PCIe (optional)
Broadcom NetXtreme GbE PCIe (optional) |
| Energy efficiency |
ENERGY STAR certified and EPEAT registered configurations available |
| Power |
240 W 90% efficient, active PFC |
| Operating temperature range |
10 to 40°C |
| Operating humidity range |
20 to 85% RH |
| Dimensions (W x D x H) |
33.8 x 37.9 x 10 cm |
| Weight |
6.84 kg |
| Security management |
TPM 1.2 Embedded Security Chip integrated with Broadcom NIC (TPM module disabled where use is restricted by law); HP ProtectTools Security Software Suite; Serial, parallel, USB enable/disable (via BIOS); HP Credential Manager; Smart Card Manager (sold separately); 12V PUSB Cards (sold separately); Power Configurable Serial Port Card COM 3 & 4 (sold separately); Wall mount (sold separately); HP Desktop Security Lock Kit (lock and cable) (sold separately); Security cable with Kensington lock (sold separately); HP Rear Port/Cable Control Cover (sold separately) |
| Pointing device |
HP USB Optical Mouse
HP PS/2 Optical Mouse |
| Keyboard |
HP USB Standard Keyboard; HP PS/2 standard Keyboard |
| Warranty |
3-year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
