SD100 Series

Drop us a line

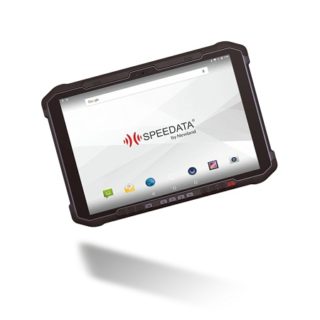

Super large and ultra clear 10″ tablet with robust and reliable performancen

Say hello to our biggest and boldest Android tablet for all your 1D and 2D scanning needs! This 10 inch robust tablet makes for the ultimate scanning companion, from shop to stock floor. Supplied with a magnetic hand strap for ease of use and a capacitive touch screen, there is literally no keeping your hands off the SD100 Orion. The additional version for healthcare, the SD100MD Orion, follows the EC60601-01 standard to ensure safe and hygienic access to patient data at a glance.

Features

Supports : 1D and 2D barcodes
Software : Built on Android 8.1
Touch screen : 10.0 inch (1920 x 1200) 5 point capacitive touch screen
Processor : Octa core 2.0FHz CPU
Memory : 4GB RAM and 64GB ROM memory
Offers : WiFi 802.11 a/b/g/n (2.4GHz & 5GHz), Bluetooth 4.1, GPS, camera, NFC, GSM, WCDMA
Accessories : Magnetic support hand strap for ease of use. Optional cradle.

Specifications

SOC	RK3368, Cortex-A53 1.5 GHz , PowerVR G6110 GPU
Operating System	Android 7.1
Memory	2GB DDR3, 8GB eMMC
Dimensions	252 × 184 × 33mm
Material	PC + ABS plastic
Weight	615 grams, main body only, without power adapter and metal bracket
Display	10.1” WXGA, 1280*800 TFT LCD display/ 10 points Capacitive Touch
VESA mount holes	Metal fitting mounting screw holes: 75*75 mm
Clock Battery	Lithium-ion non-rechargeable coin battery for RTC
DC – input	AC 100-240V, 50-60Hz, 2A Max, DC12V±5%
Power consumption	1KHz audio playback etc. about 18W maximum, OFF: 0W
LED Indicator	1x LED / Power Supply ON: red, then turns green once kernel boot up Power Supply OFF: LED off
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 55°C (14°F to 131°F)
Humidity	20% to 65% (40°C)
Sealing	IP54(front panel)
1D Barcodes	Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, GS1 Composite Code, Matrix 2 of 5, Code 11, Industrial 25, Standard 25, Plessey, MSI-Plessey, etc.
2D Barcodes	PDF417, QR Code, Data Matrix, Chinese Sensible Code, Aztec Code, Maxicode, MicroPDF417, etc.
WiFi	IEEE 802.11 a/b/g/n/ac
Bluetooth	BT 4.1
LAN	RJ45 Ethernet, 10/100/1000 BaseT / POE (Power Over Ethernet)
Camera	Front: 5.0 MP camera
Audio	1x 3.5mm Headset + MIC jack, 2x Integrated speakers 8Ω / 1.3W
Sensor	G Sensor
Other H / W	VESA mount: Metal-fitting mounting screw holes
Functional keys	(Vol+ / Vol-) / (Up / Down) / Back / Power switch
Optional Module	NFC reader / MSR reader (available in Q2/2019)
USB Port	1x USB 2.0 host, type A port, 1x Micro USB 2.0 port
SD Card Slot	SD Card (SDHC class 10 compatible) slot with cover
GPIO Port	1x GPIO port
Expansion Slot	2x POGO-PIN, USB 2.0 / Supports up to two modules working concurrently
DC-in	4mm DC-In jack, 12V / 2A
Video	MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV
Audio	MP2, WMA, WAV, AAC, OGG, ASF
Picture	JPG, BMP, GIF
Certificates	CE, FCC, RoHS
Default Accessory	Multi -pin, multi-plug AC/DC adapter with power cord VESA 75 Wall Mount
Packaging	1PCS packaging box dimensions: 29120484mm 10PCS packaging box dimensions: 437306434mm
