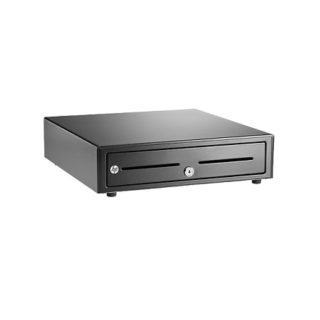

Provides excellent performance and reliability to meet the needs of today’s retailers. Durable steel construction, compact footprint and dual media slots make this a great solution for retail and hospitality environments where a quality cash drawer solution is desired at a competitive price.
Key Features
- Space-saving design to maximize space constrained environments at the point-of-sale
- Dual media slots provide additional storage beneath the till
- 3-position lock offers retailers the option to operate in locked open, online position or manually
- HP POS printer interface cable for easy connection to one of the HP POS printers (can also be connected directly to the integrated cash drawer port on the HP rp5800 Retail System)
- 3-position lock offers retailers the option to operate in locked open, online position or manually
| Construction |
Metal |
| Media Storage |
Dual media slots |
| Key Lock |
Keyed alike |
| Till Insert |
5 Bill / 5 Coin
4 Bill / 8 Coin (Adjustable coin width)
8 Bill / 8 Coin (Adjustable coin width) |
| Dimensions (WxDxH) |
16.2 x16.3 x 4.3 in (411 x 415 x 110 mm) – with feet |
| Till Dimensions(WxDxH) |
15.3 x 11.06 x 2.32 in (389 x 281 x 59 mm) |
| Shipping Weight |
21 lbs (9.5 kg) with till |
| Operating Range |
+40°F – +105°F (5°C – +40°C) |
| Color |
Black |
| Cable |
RJ45 from drawer to RJ12 |
| Cable Length |
RJ45 – 5 ft (1.524 m) |
| Operating Voltage |
24V Solenoid(Solenoid only) |
| Compatible with |
Windows 8 Professional 64
Windows 8 Professional 32
Windows POSReady8 32
Windows POSReady 8 64
Windows 7 Business 64
Windows 7 Business 32
Windows Embedded POSReady 7 64
Windows Embedded POSReady 7 32
Windows Embedded POSReady 2009
Windows Embedded for Point of Service
Windows Vista Business 32
Windows XP Professional 32 |
| Reliability |
1,000,000 opening and closing cycles |
| Drivers |
USB HID Mode
OPOS / JPOS (Windows) |
| Option kit contents |
HP Standard Duty Cash Drawer, till insert, interface cable for the HP Retail Printers, and HP Retail System Software and Documentation CD and the Options Warranty Manual. |
| Additional Options |
HP Standard Duty Till Insert with lockable lid |
