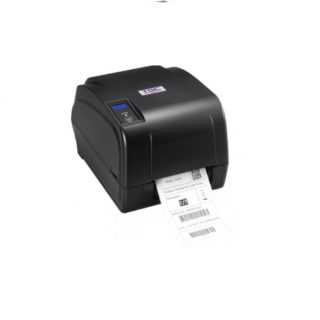

TSC TA210 Series

Drop us a line

Print labels affordably on a long-term basis – with the direct thermal and thermal transfer printers of the TA210 series from TSC this is a given. When it comes to quality, decide between two variants, the TA210 with 8 dots/mm and the TA310 with 12 dots/mm (203/300 dpi, repsectively). For lower costs use economical media with a width up to 118 mm. The 300 m ribbon has plenty of space in the housing, and with the optional external holder you can even use rolls up to 21.3 cm in diameter.

The TA210 series comes with a powerful 200 MHz 32-bit processor, 8 MB SDRAM and 4 MB Flash. As needed, you can easily remove the reliable print module, in order to save space when integrating it into kiosk applications without its housing. The TA210 series integrates itself without problems, since it comes standard with EPL and ZPL, two of the most common printer languages. Connect via USB (the cable is included in the delivery), optionally via Ethernet, parallel or serial interface.

Key Features

Low-priced barcode direct thermal and thermal transfer printer
Powerful 200 MHz 32-bit processor with 8 MB SDRAM, 4 MB Flash
EPL and ZPL printer languages standard
Print module also suited for usage in kiosk applications
External roll holder optionally available

Specifications

Printer model	TA 210
Resolution	8 dots/mm (203 DPI)
Printing method	Direct Thermal
Max. print speed	102 mm (4”)/second
Max. print width	108 mm (4.25“)
Max. print length	2,286 mm (90“)
Enclosure	Double-walled plastic
Physical dimension	200 mm (W) x 164 mm (H) x 240 mm (D) 7.87“ (W) x 6.46“ (H) x 9.45“ (D)
Weight (including battery)	1.9 kg (4.19 lbs)
Label roll capacity	127 mm (5“) OD
Processor	32-bit RISC CPU
Memory	• 4 MB Flash memory • 8 MB SDRAM • SD card reader for Flash memory expansion, up to 4 GB
Interface	• USB 2.0
Power	External universal switching power supply • Input: AC 100-240V, 1A, 47-63Hz • Output: DC 24V, 2.5A, 60W
Operation switch, button	LED 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
Sensors	• Transmissive gap sensor • Black mark reflective sensor (position adjustable) • Head open sensor
Real Time Clock	Standard
Internal fonts	• 8 alpha-numeric bitmap fonts • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	• 1D bar code Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China Post • 2D bar code PDF-417, Maxicode, DataMatrix, QR Code
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Media type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width	20 ~ 112 mm (0.78“ ~ 4.4“)
Media thickness	0.06 ~ 0.16 mm (2.36 ~ 6.3 mil)
Media core diameter	25.4 ~ 76.2 mm (1“ ~ 3“)
Label length	10 ~ 2,286 mm (0.39“ ~ 90“)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage	-40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation	KCC, CE Class B, FCC Class B, C-Tick, TÜV/Safety
Environmental concern	Comply with RoHS, WEEE
Accessories	Windows labeling software CD disk Quick start guide USB cable Power cord External universal switching power supply Label spindle, fixing tab x 2 Ribbon spindle x 2 Ribbon paper core
Limited warranty	Printer: 2 years Print head: 25km (1 million inches) or 12 months which comes first Platen: 50km (2 million inches) or 12 months which comes first
Factory options	RS-232 serial interface 128 x 64 pixels graphic type LCD display with back light Centronics parallel interface Internal Ethernet interface (10/100 Mbps)
User options	External roll mount, media OD. 214 mm (8.4”) with 76.2 mm (3”) core Bluetooth module (serial interface) 802.11 b/g/n wireless module (serial interface) 1.5“ core adapter x 2 KP-200 Plus keyboard display unit KU-007 Plus programmable smart keyboard
Dealer options	Peel-off module Guillotine cutter (full cut or partial cut)
