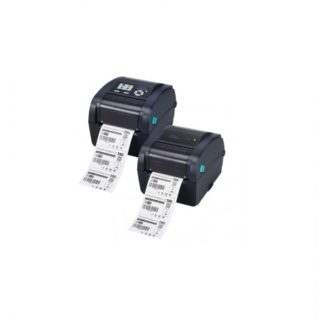

TSC TC Series

The TC Series from TSC is based upon the successful desktop label printer series TTP-245C and combines their most powerful features with numerous supplements. The reliable printers captivate with their high performance in robust yet compact housing, with which they easily withstand daily high stress. The TC Series reliably prints labels and receipts at a speed of up to 152 mm per second. Ribbon and label roll changes are done in a flash, thanks to the practical clamshell design, leading to more user-friendliness and real savings of time. The series supports label rolls up to 112 mm wide.

The TC210 and TC310 are additionally characterized by a color 2.3’’ TFT display, 128 MB Flash and 64 MB SDRAM standard memory. All models feature Ethernet, USB 2.0 and an RS232 port; on the TC200 and TC300 you additionally benefit from a parallel interface. Thanks to TSPL-EZ Firmware the printers are compatible with all common programming languages, and may therefore be integrated into all commonplace merchandise management systems and IT applications.

Key Features

• Compact desktop label printers with robust housing
• TSPL-EZ Firmware for all common programming languages
• Max. label width: 112 mm; max. print speed: 152 mm/sec.
• Simple changing of consumables, thanks to high-quality clamshell design
• Ethernet, USB, RS232 standard, additional ports optional

  Specifications

  Printer model	TSC TC
  Resolution	8 dots/mm (203 DPI)
  Printing method	Direct Thermal
  Max. print speed	102 mm (4”)/second
  Max. print width	108 mm (4.25“)
  Max. print length	2,286 mm (90“)
  Enclosure	Double-walled plastic
  Physical dimension	200 mm (W) x 164 mm (H) x 240 mm (D) 7.87“ (W) x 6.46“ (H) x 9.45“ (D)
  Weight (including battery)	1.9 kg (4.19 lbs)
  Label roll capacity	127 mm (5“) OD
  Processor	32-bit RISC CPU
  Memory	• 4 MB Flash memory • 8 MB SDRAM • SD card reader for Flash memory expansion, up to 4 GB
  Interface	• USB 2.0
  Power	External universal switching power supply • Input: AC 100-240V, 1A, 47-63Hz • Output: DC 24V, 2.5A, 60W
  Operation switch, button	LED 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
  Sensors	• Transmissive gap sensor • Black mark reflective sensor (position adjustable) • Head open sensor
  Internal fonts	• 8 alpha-numeric bitmap fonts • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
  Bar code	• 1D bar code Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China Post • 2D bar code PDF-417, Maxicode, DataMatrix, QR Code
  Font and barcode rotation	0, 90, 180, 270 degree
  Printer language	TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
  Media type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
  Media width	20 ~ 112 mm (0.78“ ~ 4.4“)
  Media thickness	0.06 ~ 0.16 mm (2.36 ~ 6.3 mil)
  Media core diameter	25.4 ~ 76.2 mm (1“ ~ 3“)
  Label length	10 ~ 2,286 mm (0.39“ ~ 90“)
  Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
  Storage	-40 ~ 60°C, 10 ~ 90% non-condensing
  Safety regulation	KCC, CE Class B, FCC Class B, C-Tick, TÜV/Safety
  Environmental concern	Comply with RoHS, WEEE
  Accessories	• Windows labeling software CD disk • Quick start guide • USB cable • Power cord • External universal switching power supply • Label spindle, fixing tab x 2, 1.5“ core adapter x 2
  Limited warranty	• Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first
  Factory options	• Real time clock
  User options	• External roll mount, media OD. 214 mm (8.4”) with 1” or 3” core • 3” core label spindle
  Dealer options	• Peel-off module • Guillotine cutter (full cut or partial cut)
