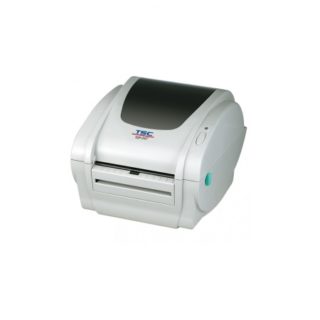

TSC TDP-247 Series

Drop us a line

Top-quality results at a high print speed – that is the trademark of the TSC desktop label printer series TDP-247. The latter produces high resolution labels at 12 dots/mm (300 dpi), and the TDP-247 achieves at 8 dots/mm (203 dpi) a print speed of 178 mm/sec. According to your requirements you will always be able to find the right printer to meet your needs. Its easy handling covers the spectrum of media loading, installation and integration.

Thanks to its ergonomic clamshell design, simply drop the label roll into the storage bay; it automatically recognizes the top of form. The TDP-247 Series comes standard with USB, parallel and serial ports, and as needed, you can integrate an optional internal network connection. Language support, such as EPL and ZPL is also integrated. Its 4 MB Flash memory and 8 MB SDRAM provide more than enough space for daily operation, however, via SD card you can expand the memory up to a maximum of 4 GB. The printers also optionally operate in stand-alone mode with a keyboard.

Key Features

High speed direct thermal label printers for desktop usage
Top print quality with a resolution of up to 12 dots/mm (300 dpi)
Max. print speed: 178 mm/sec. (TDP-247); max. label width: 112 mm
Standard EPL and ZPL language support
Large SD Flash memory, expandable up to 4 GB

Specifications

Printer model	TDP 247
Resolution	8 dots/mm (203 DPI)
Printing method	Direct Thermal
Max. print speed	102 mm (4”)/second
Max. print width	108 mm (4.25“)
Max. print length	2,286 mm (90“)
Enclosure	Double-walled plastic
Physical dimension	200 mm (W) x 164 mm (H) x 240 mm (D) 7.87“ (W) x 6.46“ (H) x 9.45“ (D)
Weight (including battery)	1.9 kg (4.19 lbs)
Label roll capacity	127 mm (5“) OD
Processor	32-bit RISC CPU
Memory	• 4 MB Flash memory • 8 MB SDRAM • SD card reader for Flash memory expansion, up to 4 GB
Interface	• USB 2.0
Power	External universal switching power supply • Input: AC 100-240V, 1A, 47-63Hz • Output: DC 24V, 2.5A, 60W
Operation switch, button	LED 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
Sensors	• Transmissive gap sensor • Black mark reflective sensor (position adjustable) • Head open sensor
Internal fonts	• 8 alpha-numeric bitmap fonts • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	• 1D bar code Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China Post • 2D bar code PDF-417, Maxicode, DataMatrix, QR Code
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Media type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width	20 ~ 112 mm (0.78“ ~ 4.4“)
Media thickness	0.06 ~ 0.16 mm (2.36 ~ 6.3 mil)
Media core diameter	25.4 ~ 76.2 mm (1“ ~ 3“)
Label length	10 ~ 2,286 mm (0.39“ ~ 90“)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage	-40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation	KCC, CE Class B, FCC Class B, C-Tick, TÜV/Safety
Environmental concern	Comply with RoHS, WEEE
Accessories	• Windows labeling software CD disk • Quick start guide • USB cable • Power cord • External universal switching power supply • Label spindle, fixing tab x 2, 1.5“ core adapter x
Limited warranty	• Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first
Factory options	• Real time clock
User options	• External roll mount, media OD. 214 mm (8.4”) with 1” or 3” core • 3” core label spindle
Dealer options	• Peel-off module • Guillotine cutter (full cut or partial cut)
