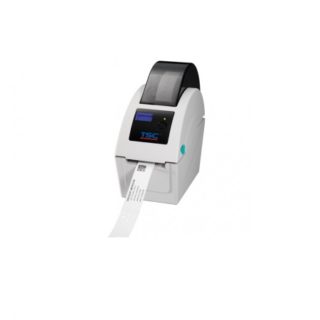

TSC TDP-324W Series

Drop us a line

Using wristbands for admission verification at concerts, amusement parks, discos and hotels, as well as for patient identification in hospitals, is both practical and cost-saving. The TDP-324W Series from TSC is custom-designed to quickly print top-quality wristbands on demand. This helps to reduce patient mix-ups in hospitals, as well as to significantly reduce waiting times for admission into events and amusement parks.

Housed in a compact double-walled clamshell design it contains the TSC technology you are accustomed to. As needed you can also mount the TDP-324W Series to the wall. Despite its small size it accommodates full-sized wristband rolls (up to a maximum width of 16.5 cm (6.5”)). Simply place the roll into the centrally-located spring-loaded holder. The printer also comes standard with one USB and one Ethernet interface, to simplify connectivity into existing networks. To keep things running smoothly, the LCD display on the front keeps you informed with print job status reports. In case your computer network fails the printer can be optionally configured to continue printing in stand-alone mode. Simply call up a stored wristband printing program from within the printer, enter your information via a PC keyboard and continue to print the wristbands needed.

Key Features

Desktop printer for professional wristbands
Space-saving design with minimalistic dimensions and wall mount
Speeds up access control at events and concerts
Simple handling thanks to LCD display and easy media loading
High quality double-walled clamshell design

Specifications

Printer model	TDP-324W
Resolution	8 dots/mm (203 DPI) 12 dots/mm (300 DPI)
Printing method	Direct Thermal
Max.print speed	127 mm (5”)/second 102 mm (4”)/second
Max. print width	54 mm (2.13“) 48 mm (1.89“)
Max. print length	2,286 mm (90“) 1,016 mm (40“)
Enclosure	Clamshell design with wall mount hole at the bottom cover
Physical dimension	109 mm (W) x 171 mm (H) x 209 mm (D) 4.29” (W) x 6.73” (H) x 8.23” (D)
Weight (including battery)	1.2 kg (2.65 lbs)
Label roll capacity	127 mm (5“) OD
Processor	32-bit RISC CPU
Memory	• 4 MB Flash memory • 8 MB SDRAM • microSD card reader for Flash memory expansion, up to 4 GB
Interface	• RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps (dealer option) • Bluetooth (user option) • External 802.11 b/g/n wireless (user option)
Power	External universal switching power supply • Input: AC 100-240V, 1A, 47-63Hz • Output: DC 24V, 2.08A, 50W
LCD	Graphic type, 128 x 64 pixels, with back light
Operation switch, button LED	1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
Sensors	• Transmissive gap sensor • Black mark reflective sensor (position adjustable) • Head open sensor
Real Time Clock	Standard
Internal fonts	• 8 alpha-numeric bitmap fonts • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	• 1D bar code Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 DataBar, Code 11 • 2D bar code PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZTM
Media type	Continuous, die-cut, black mark, fan-fold, notched, wristband (outside wound)
Media width	15 ~ 52 mm (0.59“ ~ 2.05“)
Media thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter	25.4 ~ 38 mm (1” ~ 1.5”)
Label length	10 ~ 2,286 mm (0.39“ ~ 90“) 10 ~ 1,016 mm (0.39“ ~ 40“)
Environment condition	condition Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage	-40 ~ 60°C, 10~ 90% non-condensing
Safety regulation	FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC
Environmental concern	Comply with RoHS, WEEE
Accessories	• Windows labeling software CD disk • Quick start guide • USB cable • Power cord • External universal switching power supply
Limited warranty	• Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first
Factory options	• 128 x 64 pixels graphic type LCD display with back light
User options	• Bluetooth module (serial interface) • 802.11 b/g/n wireless module (serial interface) • KP-200 Plus keyboard display unit • KU-007 Plus programmable smart keyboard
Dealer options	• Internal Ethernet interface (10/100 Mbps) • Peel-off module • Guillotine cutter (full cut and partial cut)
