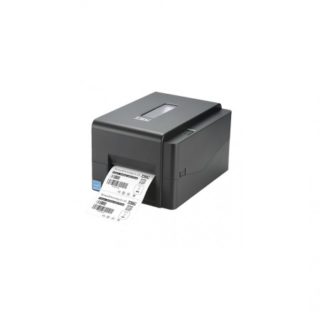

TSC TE200 Series

Drop us a line

The direct thermal/thermal transfer label printers of the TE Series from TSC are optimally suited for newcomers. Depending on the model, the compact desktop printers print labels at a resolution of 203 or 300 dpi and at up to 152 mm per second. The TE Series supports ribbons up to 300 meters long. With the optional external roll holder you extend the media change intervals. For usage in kiosk applications and for double-sided prints simply remove the complete printing module from the housing. The entire series also stands for simple handling and maintenance: you easily exchange the print head and counter-pressure roller without any tools.

USB 2.0 is integrated factory-direct. Depending on the model, you expand the printers via USB host, Ethernet, RS232 or Bluetooth. You may additionally integrate a peeler or cutter module. Thus, the TE Series is ideally suited for the labelling of goods in warehouses, shipping, even retail and many other areas.

Key Features

Direct thermal/Thermal transfer desktop label printers
Excellent price-performance ratio
RS232, Ethernet and USB host optionally available
Up to 64 MB SDRAM and 128 MB Flash
Max. resolution 300 dpi; max. speed: 152 mm/sec.

Specifications

Printer model	TE200
Resolution	8 dots/mm (203 DPI)
Printing method	Direct Thermal
Max. print speed	102 mm (4”)/second
Max. print width	108 mm (4.25“)
Max. print length	2,286 mm (90“)
Enclosure	Double-walled plastic
Physical dimension	200 mm (W) x 164 mm (H) x 240 mm (D) 7.87“ (W) x 6.46“ (H) x 9.45“ (D)
Weight (including battery)	1.9 kg (4.19 lbs)
Label roll capacity	127 mm (5“) OD
Processor	32-bit RISC CPU
Interface	• USB 2.0
Memory	• 4 MB Flash memory • 8 MB SDRAM • SD card reader for Flash memory expansion, up to 4 GB
Power	External universal switching power supply • Input: AC 100-240V, 1A, 47-63Hz • Output: DC 24V, 2.5A, 60W
Operation switch, button	LED 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
Sensors	• Transmissive gap sensor • Black mark reflective sensor (position adjustable) • Head open sensor
Real Time Clock	Standard
Internal fonts	8 alpha-numeric bitmap fonts Monotype Image true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	1D bar code: Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on,Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D bar code : GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZD(Compatible to EPL, ZPL, ZPL II, DPL)
Media type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width	20 ~ 112 mm (0.8“ ~ 4.4“)
Media thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter	25.4 ~ 38 mm (1” ~ 1.5”)
Label length	TE200 : 5 ~ 2,794 mm(0.2“ ~ 110“) TE210 : 5 ~ 25,400 mm(0.2“ ~ 1000“)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation	TE200 : FCC Class A, CE Class A, C-Tick Class A, UL, cUL, TÜV/safety, CCC, EAC, CoC, BIS, KC, Energy Star TE210 : FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, EAC, CoC, BIS, KC, Energy Star
Environmental concern	Comply with RoHS, REACH,WEEE
Accessories	Windows labeling software CD disk Quick start guide USB cable Power cord External universal switching power supply Label spindle, fixing tab x 2 Ribbon spindle x 2 Ribbon paper core
Limited warranty	Printer: 2 years Print head: 25km (1 million inches) or 12 months which comes first Platen: 50km (2 million inches) or 12 months which comes first
Factory options	Internal Bluetooth 4.0
User options	TE200 : External roll mount, media OD. 214 mm (8.4”) with 76.2 mm (3”) core TE210 External roll mount, media OD. 214 mm (8.4”) with 76.2 mm (3”) core External Bluetooth module (serial interface) KP-200 Plus keyboard display unit KU-007 Plus programmable smart keyboard
Dealer options	TE200 : N/A TE210 Peel-off module Guillotine cutter (full cut and partial cut)
