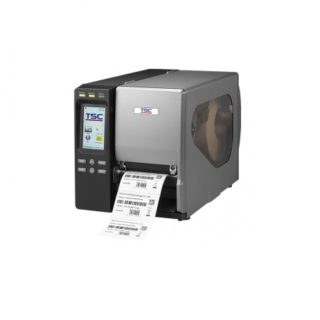

TSC TTP-2410MT Series

Drop us a line

The TSC TTP-2410MT Series offers you the best quality that TSC has ever packed into mid-range printers. With a print speed of up to 356 mm per second, you not only print labels quickly, but also with a higher resolution of up to 600 dpi, depending on the model. The aluminum injection-moulded housing ensures for the necessary robustness, so that consistently high-quality print results are guaranteed, even in rough environments, on a daily basis. With the TTP-2410MT Series you print a wide variety of labels – from labels for patient safety in the healthcare industry to small-format labels for the electronics and jewelry industries to shipping labels.

Equipped with the new TSPL-EZ Firmware, the TSC TTP-2410MT Series offers an integrated and automatic language emulation for common programming languages, thus making integration into commonplace merchandise management systems and IT applications easy. The rich contrast, color 4.3” LCD touch panel relays information about critical data, such as the print status or the remaining ribbon length, thus increasing user-friendliness.

Key Features

Thermal transfer/direct thermal printers for high-quality labels
Particularly fast printing with 356 mm/sec. at up to 600 dpi
User-friendly, color 4.3” touch LCD panel
Thermal Smart Control printing technology for ideal label printing
Less roll changes thanks to large ribbon holders up to 600m

Specifications

Printer model	TTP-2410 MT
Resolution	8 dots/mm (203 DPI) 12 dots/mm (300 DPI) 24 dots/mm (600 DPI)
Printing method	Thermal Transfer & Direct Thermal
Max.print speed	356 mm (14″)/second 254 mm (10″)/second 102 mm (4″)/second
Max.print width	104 mm (4.09″)
Max. print length	25,400 mm (1,000″) 11,430 mm (450″) 2,540 mm (100″)
Enclosure	Die-cast aluminum base and frame/ Metal cover with two hinges & large clear media view window
Physical dimension	270 mm (W) x 308 mm (H) x 515 mm (D)10.63″ (W) x 12.13″ (H) x 20.28″ (D)
Weight (including battery)	15 kg (33.07 lbs)
Label roll capacity	208.3 mm (8.2″) OD
Ribbon	600 m long, max. OD 90 mm, 1″ core (ink coated outside or inside)
Ribbon width	25.4 mm ~ 114.3 mm (1″ ~ 4.5″)
Processor	32-bit RISC CPU
Memory	• 128 MB Flash memory (factory option 512 MB) • 128 MB SDRAM (factory option 256 MB) • SD Flash memory card reader for Flash memory expansion, up to 32 GB
Interface	• RS-232 • Centronics • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host, for scanner or PC keyboard • GPIO (factory option) • Bluetooth (user option) • External 802.11 b/g/n Wireless (user option)
Power	• Input: AC 100-240V, 2A, 50-60Hz • Output: DC 24V, 5A, 120W LCD Resistive Touch Screen, 16 bits Color, 480 x 272 pixels, with back lights
LCD	Resistive Touch Screen, 16 bits Color, 480 x 272 pixels, with back lights
Operation switch, button	button, LED 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select) & 3 LEDs
Sensors	• Gap transmissive sensor (position adjustable) • Black mark reflective sensor (position adjustable) • Head open sensor • Ribbon encoder sensor • Ribbon end sensor Real time clock Standard Internal fonts • 8 alpha-numeric bitmap fonts • Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
Label length	5 ~ 25,400 mm (0.20″ ~ 1,000″) 5 ~ 11,430 mm (0.20″ ~ 450″) 5 ~ 2,540 mm (0.20 ” ~ 100″)
Bar code	1D bar code: Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 Data bar 2D bar code : PDF-417, Maxicode, DataMatrix, QR code, Aztec
Printer language	TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Media type	Continuous, die-cut, fan-fold, tag, notched, black mark, perforated, care label (outside wound)
Media width	25.4 ~ 116 mm (1″ ~ 4.5″)
Media thickness	0.06 ~ 0.30 mm (2.36 ~ 11.81 mil)
Media core diameter	10.2 ~ 25.4 mm (0.4″ ~ 1″)
Environment condition	Operation: 5 ~ 40°C, 20 ~ 85% non-condensing
Safety regulation	FCC Class A, CE Class A, C-Tick Class A, UL, CUL, TÜV/Safety, CCC, CB
Environmental concern	Comply with RoHS, WEEE
Accessories	• Windows labeling software CD disk • Quick start guide • USB cable • Power cord
Limited warranty	• Printer: 2 years • Print head: 25 km (1 million inches) or 12 months which comes first • Platen: 50 km (2 million inches) or 12 months which comes first
Factory options	• GPIO interface • Mainboard with extended memory (512 MB Flash/ 256 MB SDRAM) Dealer options • Internal rewinding kit (Max. 6″ OD) • Peel-off kit
User options	• Bluetooth module (serial interface) • 802.11 b/g/n Wireless module (serial interface) • Regular cutter (full cut guillotine cutter) • Heavy duty cutter (rotary cutter) • Care label cutter (rotary cutter) • KP-200 Plus keyboard display unit • KU-007 Plus programmable smart keyboard
