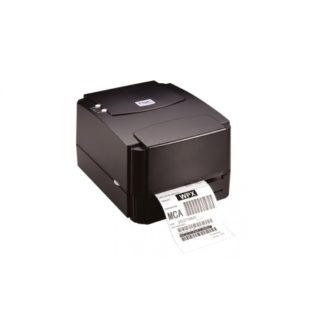

TSC TTP-244 Pro

Drop us a line

The desktop label printer TSC TTP-244 Pro is the result of successful further developments in the TTP 244 Series. The compact thermal transfer printer has everything that a classical market-entry printer needs: quality, affordable printing and reliability – with above-average characteristics. With a print speed of 127 mm per second the printer is 25% faster than its predecessor, plus it handles 300 m thermal transfer ribbons and label rolls with a diameter of up to 204 mm. This reduces the daily operating costs of ribbon and media changes to a minimum, which makes the market-entry printer very attractive for usage in incoming goods, shipping and product labelling.

The TTP-244 Pro is equipped with an integrated USB port and optionally with an additional RS232 or LPT port, depending on the model. Thanks to the internal scalable True Type font types, and the support of the most common global emulations, the printer is connected and configured in no time at all. A dual gear-driven motor additionally secures its longevity.

Key Features

Market-entry thermal transfer printer for product labelling and shipping
Print longer without interruptions, thanks to 300 m ribbon core
Attractive market-entry price tag and reliable print quality
Simple connection via USB, optional RS232 and LPT interfaces
Optionally available with memory extension via SD slot

Specifications

tr class=”producttablerow”>

Printer model	TTP 244Pro
Resolution	8 dots/mm (203 DPI)
Printing method	Direct Thermal
Max.print speed	102 mm (4”)/second
Max. print width	108 mm (4.25“)
Max. print length	2,286 mm (90“)
Enclosure	Double-walled plastic
Physical dimension	200 mm (W) x 164 mm (H) x 240 mm (D) 7.87“ (W) x 6.46“ (H) x 9.45“ (D)
Weight (including battery)	1.9 kg (4.19 lbs)
Label roll capacity	127 mm (5“) OD
Processor	32-bit RISC CPU
Bar code	• 1D bar code Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China Post • 2D bar code PDF-417, Maxicode, DataMatrix, QR Code
Operation switch, button,	LED 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
Memory	• 4 MB Flash memory • 8 MB SDRAM • SD card reader for Flash memory expansion, up to 4 GB
Interface	USB 2.0 RS-232 Centronics (factory option) Internal Ethernet, 10/100 Mbps (factory option) Bluetooth (user option) External 802.11 b/g/n wireless (user option)
Power	External universal switching power supply Input: AC 100-240V, 50-60Hz Output: DC 24V, 2.5A, 60W
Operation switch, button	1 power switch, 1 feed button & 3 LED (Power, Error, On-line)
Sensors	Transmissive gap sensor Black mark reflective sensor Ribbon end sensor
Internal fonts	• 8 alpha-numeric bitmap fonts • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11 2D bar code : PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZTM (Compatible to EPL, ZPL, ZPL II)
Media type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width	20 ~ 112 mm (0.78“ ~ 4.4“)
Media thickness	0.06 ~ 0.16 mm (2.36 ~ 6.3 mil)
Media core diameter	25.4 ~ 76.2 mm (1“ ~ 3“)
Label length	10 ~ 2,286 mm (0.39“ ~ 90“)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage	-40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation	KCC, CE Class B, FCC Class B, C-Tick, TÜV/Safety
Environmental concern	Comply with RoHS, WEEE
Accessories	• Windows labeling software CD disk • Quick start guide • USB cable • Power cord • External universal switching power supply • Label spindle, fixing tab x 2, 1.5“ core adapter x 2
Limited warranty	• Windows labeling software CD disk • Quick start guide • USB cable • Power cord • External universal switching power supply • Label spindle, fixing tab x 2, 1.5“ core adapter x 2
Factory options	• Real time clock
User options	• External roll mount, media OD. 214 mm (8.4”) with 1” or 3” core • 3” core label spindle
Dealer options	• Peel-off module • Guillotine cutter (full cut or partial cut)
