TSC TTP-247 Series

Drop us a line

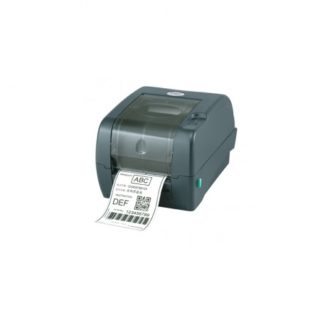

Within the double-walled housing of the thermal transfer printer TTP-247 from TSC you will discover powerful technology. Through its high resolution and sharp print image onto labels with 112 mm widths it delivers top-quality results. According to the requirement and demand, choose between the model with 8 dots/mm (203 dpi) and the one with 12 dots/mm (300 dpi). The print speed of both models will impress you – 178 mm/sec. and 127 mm/sec., respectively.

The printer command language of the TTP-247 is compatible with EPL and ZPL, which, together with the standard integrated USB, parallel and serial ports ensures for simple integration. Optionally there is also an Ethernet port available. With 8 MB SDRAM and 4 MB Flash it processes quickly and reliably. If you require more memory, expand its capacity via an SD card reader. Media change is easy, thanks to its practical clamshell design, plus it holds material up to 300 m long. By using two motors instead of one, it reduces noise and extends the printer’s life.

Key Features

Thermal transfer label printer for 112 mm wide media
High quality results thanks to a resolution of up to 12 dots/mm (300 dpi)
User-friendly clamshell design for simple handling
Printer command language compatible with EPL and ZPL
USB, parallel and serial on-board, Ethernet optional

Specifications

Printer model	TTP-247
Resolution	8 dots/mm (203 DPI)
Printing method	Thermal Transfer & Direct Thermal
Max. print speed	178 mm (7”)/second
Max. print width	108 mm (4.25“)
Max. print length	2,286 mm (90“)
Enclosure	Double-walled plastic
Physical dimension	213 mm (W) x 188 mm (H) x 314 mm (D) 8.39“ (W) x 7.40“ (H) x 12.36“ (D)
Weight (including battery)	2.8 kg (6.17 lbs)
Label roll capacity	127 mm (5“) OD
Ribbon	300 m long, max. OD 67 mm, 1“ core (ink coated outside)
Ribbon width	40 mm ~ 110 mm (1.6” ~ 4.3”)
Processor	32-bit RISC CPU
Memory	4 MB Flash memory, 8 MB SDRAM microSD card reader for Flash memory expansion, up to 4 GB
Interface	USB 2.0 ,RS-232 ,Centronics Internal Ethernet, 10/100 Mbps (factory option) Bluetooth (user option) External 802.11 b/g/n wireless (user option)
Power	External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz Output: DC 24V, 3.75A, 90W
Operation switch, button	1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
Sensors	Transmissive gap sensor Black mark reflective sensor Head open sensor Ribbon end sensor
Internal fonts	8 alpha-numeric bitmap fonts Monotype Image true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	1D bar code: Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11 2D bar code : PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZ
Media type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width	20 ~ 112 mm (0.78“ ~ 4.4“)
Media thickness	0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter	25.4 ~ 76.2 mm (1“ ~ 3“)
Label length	10 ~ 2,286 mm (0.39“ ~ 90“)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation	FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC
Environmental concern	Comply with RoHS, WEEE
Accessories	Windows labeling software CD disk Quick start guide USB cable Power cord External universal switching power supply Label spindle, fixing tab x 2, 1.5“ core adapter x 2 Ribbon spindle x 2, Ribbon paper core
Limited warranty	Printer: 2 years Print head: 25km (1 million inches) or 12 months which comes first Platen: 50km (2 million inches) or 12 months which comes first
Factory options	Internal Ethernet interface (10/100 Mbps) Real time clock
User options	Bluetooth module (serial interface) 802.11 b/g/n wireless module (serial interface) External roll mount, media OD. 214 mm (8.4”) on a 1” or 3” core 3” core label spindle KP-200 Plus keyboard display unit KU-007 Plus programmable smart keyboard
Dealer options	Peel-off module Guillotine cutter (full cut or partial cut)
