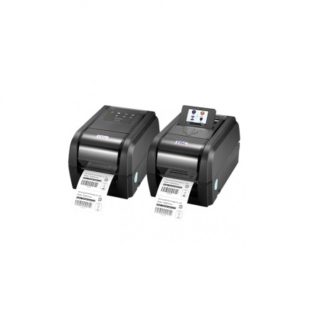

TSC TX200 Series

Drop us a line

With the all-round label printers of the TSC TX200 Series, you produce standard labels for shipping, as well as pinpoint sharp miniature labels for electronic components, depending on the model – in record time of up to 203 mm per second. The compact thermal transfer label printers deliver the performance and quality of industrial printers in conjunction with the price advantage of a desktop model; thus, they are ideal for nearly every application and industry.

The powerful desktop printers print standard labels, continuous material and stacked media up to a width of 108 mm with a print resolution of either 203 dpi, 300 dpi or pinpoint sharp 600 dpi – depending on the variant and the application area. Standard equipped with USB, Ethernet and a USB 2.0 connection, the printers of the TX200 Series are easily and quickly integrated, even into complex structures. Optionally, you install the label printers entirely without cables via external Bluetooth or a WLAN module. What is really outstanding in their class is the above-average integrated memory of a generous 128 MB, as well as 128 MB RAM.

Key Features

High-performance thermal label printers for every area of application
Fast printing with up to 203 mm per second
Optionally available with a 3.5” color display for simple stand-alone operation
300 m ribbon core for long exchange intervals
Ethernet, USB and RS232 interfaces integrated, standard

Specifications

Printer model	TX200
Resolution	8 dots/mm (203 DPI)
Printing method	Thermal Transfer & Direct Thermal
Max. print speed	203 mm (8”)/second
Max. print width	108 mm (4.25“)
Max. print length	25,400 mm (1,000“)
Enclosure	Clamshell with double-walled plastic
Physical dimension	226 mm (W) x 198 mm (H) x 332 mm (D) 8.90“ (W) x 7.80“ (H) x 13.07“ (D)
Weight (including battery)	3.75 kg (8.27 lbs)
Label roll capacity	127 mm (5“) OD
Ribbon	300 m long, max. OD 67 mm, 1“ core (ink coated outside)
Ribbon width	40 mm ~ 110 mm (1.6” ~ 4.3”)
Processor	32-bit RISC CPU
Memory	128 MB Flash memory, 128 MB SDRAM microSD card reader for Flash memory expansion, up to 32 GB
Interface	USB 2.0 ,RS-232 Internal Ethernet, 10/100 Mbps, USB Host Centronics (factory option) External Bluetooth (user option) External 802.11 b/g/n wireless (user option)
Power	External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz Output: DC 24V, 3.75A, 90W
Operation switch, button	1 power switch, 1 feed button & LED panel with 8 big icons
Sensors	Transmissive gap sensor Black mark reflective sensor Head open sensor Ribbon end sensor
Real time clock	Factory Option
Internal fonts	8 alpha-numeric bitmap fonts Monotype Image true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code	1D bar code: Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleaved 2 of 5, EAN 8, EAN 13, EAN 128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China post, ITF14, EAN14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS 2D bar code : TLC39, CODABLOCK F mode, PDF-417, Maxicode, DataMatrix, QR code, Aztec, Micro PDF 417, GS1 DataBar (RSS barcode)
Font and barcode rotation	0, 90, 180, 270 degree
Printer language	TSPL-EZ
Media type	Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width	19 ~112 mm (0.75” ~ 4.4”)
Media thickness	0.055 ~ 0.254 mm (2.17 ~ 10 mil)
Media core diameter	25.4 ~ 38.1 mm (1” ~ 1.5”)
Label length	3 ~ 25,400 mm (0.1“ ~ 1,000“)
Environment condition	Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Safety regulation	FCC Class B, CE Class B, RCM, UL, cUL, TÜV/Safety, CCC, ENERGY STAR
Environmental concern	Comply with RoHS, WEEE
Accessories	Windows labeling software CD disk Quick start guide USB cable Power cord External universal switching power supply
Limited warranty	Printer: 2 years Print head: 25km (1 million inches) or 12 months which comes first Platen: 50km (2 million inches) or 12 months which comes first
Factory options	Centronics parallel interface Real time clock 3.5” color TFT display (includes real time clock) Ribbon end sensor
User options	Bluetooth module (serial interface) 802.11 b/g/n wireless module (serial interface) External roll mount, media OD. 214 mm (8.4”) on a 1” or 3” core KP-200 Plus keyboard display unit KU-007 Plus programmable smart keyboard
Dealer options	Peel-off module Guillotine cutter (full cut or partial cut)
